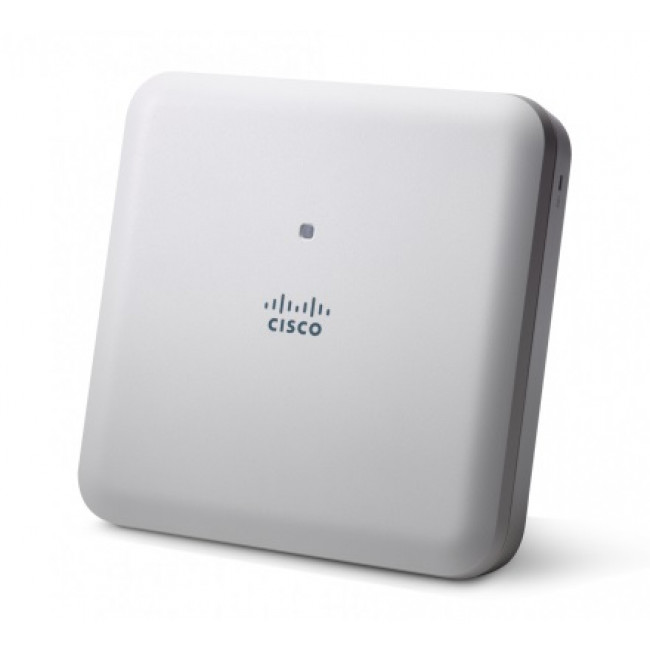

Cisco AIR-AP1832I-E-K9

A

C

E

I

J

K

N

P

S

T

FCC (США)

China

ETSI

Israel

TELEC (Japan)

Korea

North America (исключая FCC)

Japan2

Singapore

Taiwan

Software

Cisco Unified Wireless Network Software Release with AireOS wireless controllers:

●  8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes

Centralized, standalone, sniffer**, Cisco FlexConnect™, monitor**, OfficeExtend**, mesh**

Supported wireless LAN controllers

●  Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller,** Cisco Catalyst 3650 and 3850 Series Switches with integrated controller**

●  Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

●  3x3 MIMO with two spatial streams

●  Maximal ratio combining (MRC)

●  20- and 40-MHz channels

●  PHY data rates up to 300 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 dynamic frequency selection (DFS)

●  Cyclic shift diversity (CSD) support

802.11ac Wave 1 and 2 capabilities

●  3x3 MIMO with two spatial streams, single-user or multiuser MIMO

●  MRC

●  802.11ac beamforming (transmit beamforming)

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz:

MCS Index

GI = 800 ns

GI = 800 ns

GI = 400 ns

GI = 400 ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

Data rates supported

MCS Index

GI = 800 ns

GI = 800 ns

GI = 400 ns

GI = 400 ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

802.11ac data rates (5 GHz):

MCS
Index

Spatial Streams

GI = 800 ns

GI = 400 ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

0

1

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

2

1

19.5

40.5

87.8

21.7

45

97.5

3

1

26

54

117

28.9

60

130

4

1

39

81

175.5

43.3

90

195

5

1

52

108

234

57.8

120

260

6

1

58.5

121.5

263.3

65

135

292.5

7

1

65

135

292.5

72.2

150

325

8

1

78

162

351

86.7

180

390

MCS
Index

Spatial Streams

GI = 800 ns

GI = 400 ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

9

1

–

180

390

–

200

433.3

0

2

13

27

58.5

14.4

30

65

1

2

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

3

2

52

108

234

57.8

120

260

4

2

78

162

351

86.7

180

390

5

2

104

216

468

115.6

240

520

6

2

117

243

526.5

130

270

585

7

2

130

270

585

144.4

300

650

8

2

156

324

702

173.3

360

780

9

2

–

360

780

–

400

866.7

Maximum number of nonoverlapping channels

A (A regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.720 GHz; 12 channels

●  5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

E (E regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.745 to 5.805 GHz; 4 channels

H (H regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.150 to 5.350 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.620 GHz; 7 channels

●  5.745 to 5.805 GHz; 4 channels

N (N regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.660 to 5,805 GHz; 7 channels

S (S regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz;, 11 channels

●  5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.280 to 5.320 GHz; 3 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Maximum number of nonoverlapping channels

2.4 GHz

●  802.11b/g:

◦   20 MHz: 3

●  802.11n:

◦   20 MHz: 3

5 GHz

●  802.11a:

◦   20 MHz: 25

●  802.11n:

◦   20 MHz: 25

◦   40 MHz: 12

●  802.11ac:

◦   20 MHz: 21

◦   40 MHz: 12

◦   80 MHz: 6

Receive sensitivity

●  802.11b (CCK)

◦   -101 dBm @ 1 Mbps

◦   -98 dBm @ 2 Mbps

◦   -92 dBm @ 5.5 Mbps

◦   -89 dBm @ 11 Mbps

●  802.11g (non HT20)

◦   -96 dBm @ 6 Mbps

◦   -95 dBm @ 9 Mbps

◦   -94 dBm @ 12 Mbps

◦   -92 dBm @ 18 Mbps

◦   -88 dBm @ 24 Mbps

◦   -85 dBm @ 36 Mbps

◦   -81 dBm @ 48 Mbps

◦   -79 dBm @ 54 Mbps

●  802.11a (non HT20)

◦   -96 dBm @ 6 Mbps

◦   -95 dBm @ 9 Mbps

◦   -94 dBm @ 12 Mbps

◦   -92 dBm @ 18 Mbps

◦   -88 dBm @ 24 Mbps

◦   -85 dBm @ 36 Mbps

◦   -80 dBm @ 48 Mbps

◦   -79 dBm @ 54 Mbps

Receive sensitivity

2.4 GHz

●  802.11n (HT20)

◦   -96 dBm @ MCS0

◦   -93 dBm @ MCS1

◦   -90 dBm @ MCS2

◦   -87 dBm @ MCS3

◦   -84 dBm @ MCS4

◦   -79 dBm @ MCS5

◦   -78 dBm @ MCS6

◦   -76 dBm @ MCS7

◦   -93 dBm @ MCS8

◦   -90 dBm @ MCS9

◦   -87 dBm @ MCS10

◦   -84 dBm @ MCS11

◦   -81 dBm @ MCS12

◦   -76 dBm @ MCS13

◦   -75 dBm @ MCS14

◦   -73 dBm @ MCS15

5 GHz

●  802.11n (HT20)

◦   -96 dBm @ MCS0

◦   -92 dBm @ MCS1

◦   -90 dBm @ MCS2

◦   -86 dBm @ MCS3

◦   -83 dBm @ MCS4

◦   -79 dBm @ MCS5

◦   -77 dBm @ MCS6

◦   -76 dBm @ MCS7

◦   -93 dBm @ MCS8

◦   -89 dBm @ MCS9

◦   -87 dBm @ MCS10

◦   -83 dBm @ MCS11

◦   -80 dBm @ MCS12

◦   -76 dBm @ MCS13

◦   -74 dBm @ MCS14

◦   -73 dBm @ MCS15

5 GHz

●  802.11n (HT40)

◦   -93 dBm @ MCS0

◦   -90 dBm @ MCS1

◦   -87 dBm @ MCS2

◦   -84 dBm @ MCS3

◦   -80 dBm @ MCS4

◦   -76 dBm @ MCS5

◦   -75 dBm @ MCS6

◦   -73 dBm @ MCS7

◦   -90 dBm @ MCS8

◦   -87 dBm @ MCS9

◦   -84 dBm @ MCS10

◦   -81 dBm @ MCS11

◦   -77 dBm @ MCS12

◦   -73 dBm @ MCS13

◦   -72 dBm @ MCS14

◦   -70 dBm @ MCS15

802.11ac Receive Sensitivity

802.11ac (non HT80)

●  -89 dBm @ 6 Mbps

●  -73 dBm @ 54 Mbps

MCS Index

Spatial Streams

VHT20

VHT40

VHT80

0

1

-96 dBm

-93 dBm

-89 dBm

7

1

-76 dBm

-73 dBm

-70 dBm

8

1

-71 dBm

-69 dBm

-66 dBm

9

1

NA

-67 dBm

-64 dBm

0

2

-93 dBm

-90 dBm

-86 dBm

7

2

-73 dBm

-70 dBm

-67 dBm

8

2

-68 dBm

-66 dBm

-63 dBm

9

2

NA

-64 dBm

-61 dBm

Maximum transmit power

2.4 GHz

●  802.11b

◦   22 dBm, 3 antennas

●  802.11g

◦   22 dBm, 3 antennas

●  802.11n (HT20)

◦   22 dBm, 3 antennas

5 GHz

●  802.11a

◦   23 dBm, 3 antennas

●  802.11n (HT20)

◦   23 dBm, 3 antennas

●  802.11n (HT40)

◦   23 dBm, 3 antennas

●  802.11ac

◦   non-HT80: 23 dBm, 3 antennas

◦   VHT20 23 dBm, 3 antennas

◦   VHT40: 23 dBm, 3 antennas

◦   VHT80: 23 dBm, 3 antennas

Available transmit power settings

2.4 GHz

●  22 dBm

●  19 dBm

●  16 dBm

●  13 dBm

●  10 dBm

●  7 dBm

●  4 dBm

●  1 dBm

5 GHz

●  23 dBm

●  20 dBm

●  17 dBm

●  14 dBm

●  11 dBm

●  8 dBm

●  5 dBm

●  2 dBm

Integrated antenna

●  2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

●  5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

●  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

●  Management console port (RJ-45)

●  USB 2.0 (enabled via future software)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H)

●  Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

●  3.12 lb (1.41 kg)

Environmental

Cisco Aironet 1830i

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

●  Operating temperature: 32° to 104°F (0° to 40°C)

●  Operating humidity: 10% to 90% (noncondensing)

●  Operating altitude test: 40˚C, 9843 ft.

System memory

●  1 GB DRAM

●  256 MB flash

Input power requirements

●  AP1830: 44 to 57 VDC

●  Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

●  15.4W

Powering options

●  802.3af/802.3at

●  Enhanced PoE

●  Cisco local power supply, AIR-PWR-C=

●  Cisco power injector, AIR-PWRINJ5=, AIR-PWRINJ6=

Warranty

Limited lifetime hardware warranty

Compliance standards

◦   UL 60950-1

◦   CAN/CSA-C22.2 No. 60950-1

◦   UL 2043

◦   IEC 60950-1

◦   EN 60950-1

●  Radio approvals:

◦   FCC Part 15.247, 15.407 **

◦   RSS-210 (Canada)

◦   EN 300.328, EN 301.893 (Europe)

◦ &
