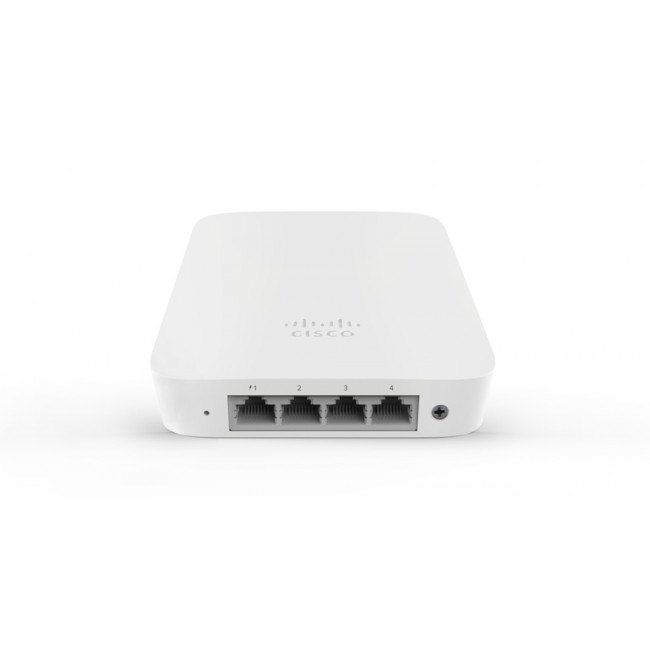

Cisco Meraki MR30H-HW

Технические характеристики точки доступа Cisco Meraki MR30H-HW:

Radios

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac client access radio
• 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
• Concurrent operations of all four radios

Operating Bands

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHZ (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725 -5.825 GHz (UNII-3)

802.11ac & 802.11n Capabilities

• 2x2 multiple input, multiple output (MIMO) with two spatial streams
• SU-MIMO and MU-MIMO support
• Maximal ratio combining (MRC) & Beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
• Up to 256 QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet: 37 - 57 (802.3at compatible)
• Power consumption: 25W max (802.3at)
• 802.3af operating mode disables PoE out
• Power over Ethernet injector sold separately

Mounting

• Mounting hardware included for US, UK, EU, AU & Asia single gang wall jacks

Physical Security

• Two security screw options (included)
• Concealed mount plate

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 6.1” x 4.3” x 0.9” (155 mm x 110 mm x 23 mm), not including mount foot or mount plate
• Weight: 14.4 oz (409 g)

Antenna

• Integrated omni-directional antennas (3.7 dBi gain at 2.4 GHz, 4.8 dBi gain at 5 GHz)

Interfaces

• 1 × 10/100/1000 BASE-T Ethernet (RJ45) input
• 1 × Gigabit Ethernet (RJ45) with 802.3af Power over Ethernet output
• 3 × Gigabit Ethernet (RJ45) out

Security

• Integrated layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralized layer 3 roaming

LED Indicators

• 4x 2 Ethernet status for Ethernet ports
• 1 power/booting/firmware upgrade status
