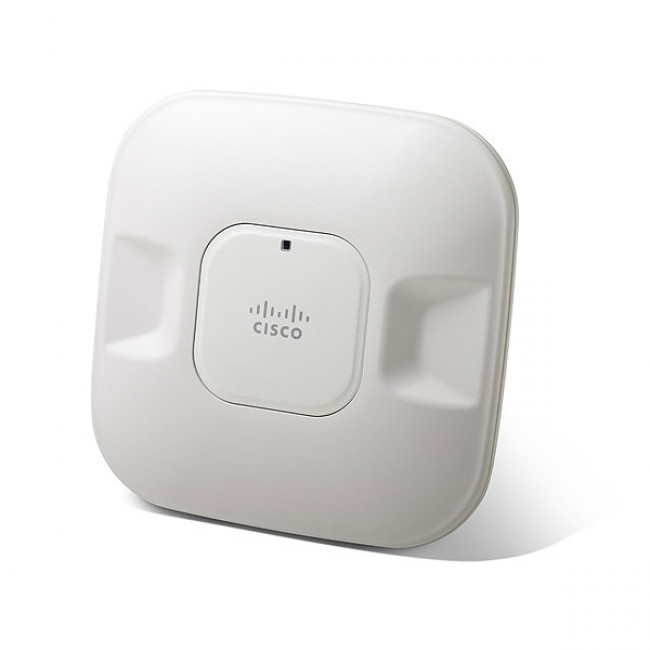

Cisco AIR-AP1042N-I-K9

Manufacturer:

Cisco

Product ID:

AIR-AP1042N-I-K9

Product Description:

802.11a/g/n Fixed Auto AP; Int Ant; I Reg Domain

Product Type:

Wireless Access Point

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.32 GHz

Total Number of Antennas:

4

Antenna Gain:

4 dBi

3 dBi

Wireless Transmission Speed:

300 Mbps

Wireless Security:

• WPA
• WPA2
• IEEE 802.11i
• IEEE 802.1x
• EAP-TLS
• EAP-TTLS
• EAP-MSCHAPv2
• PEAP
• EAP-FAST
• EAP-GTC
• EAP-SIM
• AES
• TKIP

Features:

MIMO Technology

Interfaces/Ports

Ethernet Port:

Yes

Fast Ethernet Port:

Yes

Gigabit Ethernet Port:

Yes

10Gigabit Ethernet Port:

No

Number of Network (RJ-45) Ports:

1

Network (RJ-11):

No

PoE (RJ-45) Port:

Yes

VGA:

No

HDMI:

No

Audio Line Out:

No

Serial Port:

No

USB:

No

Powerline:

No

Management Port:

Yes

Management & Protocols

Management:

Radio Resource Management (RRM)

Power Description

Input Voltage:

57 V DC

Power Source:

AC Adapter

Physical Characteristics

Form Factor:

Ceiling Mountable

Height:

1.9"

Width:

8.7"

Depth:

8.7"

Weight (Approximate):

2.30 lb
