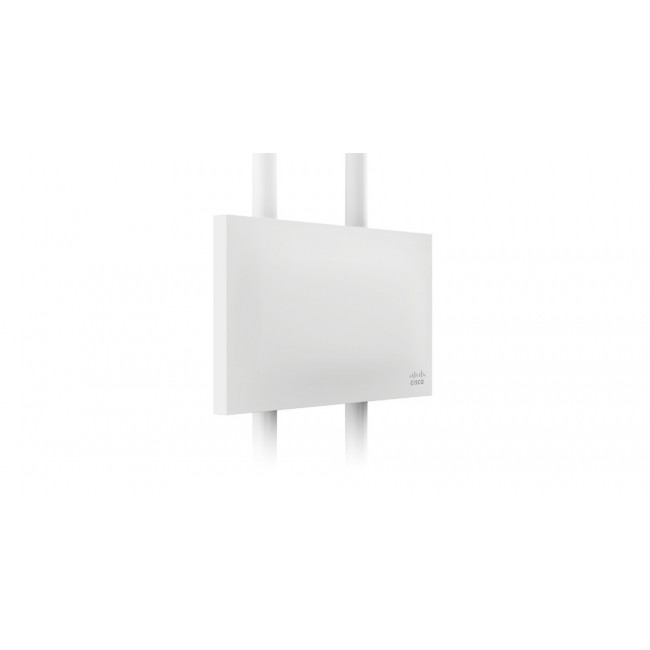

Cisco Meraki MR74-HW

Технические характеристики точки доступа Cisco Meraki MR74-HW:

Radios

• One 802.11b/g/n, one 802.11ac/a/n radio, and one dedicated for dual-band WIPS & spectrum analysis
• Concurrent operation of all three radios
• Max data rate 1.2 Gbit/s
• Integrated Bluetooth low energy radio (concurrent to WiFi radios)

Operating Bands

• FCC (US)
  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.725-5.825 GHz (UNII-3)
• EU (Europe)
  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350, 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)

802.11ac & 802.11n Capabilities

• 2x2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n)
• Packet aggregation
• Cyclic shift diversity (CSD) support

Power

• Power over Ethernet: 24 - 57 V (802.3af compatible)
• Power consumption: 13.87 W max
• Power over Ethernet injector sold separately

Mounting

• Mounts to walls and horizontal, vertical, and angled poles
• Mounting hardware included

Physical Security

• Security screw included
• Anti-tamper cable bay
• Concealed mount plate

Environment

• Operating temperature: -40°F to 131°F (-40°C to 55°C)
• IP67 environmental rating (sealed against water and dust)

Physical Dimensions

• 10.1” x 6.22” x 3.3” (256 mm x 158 mm x 83 mm) not including mount
• Weight: 3.1 lb (1.4 kg)

Interfaces

• One 100/1000 Mbps auto-crossover Ethernet port
• Four external N-type connectors (note: antennas sold separately)
• 1 power/booting/firmware upgrade status

Security

• Integrated policy firewall (Identity Policy Manager)
• Air Marshal: real-time WIPS with forensics
• Guest Isolation
• WEP, WPA
• WPA2-PSK
• WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1Q)

Quality of Service

• Advanced Power Save (U-APSD)
• DSCP (802.1p)

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• 802.11r and 802.11k
• L3 roaming

LED Indicators

• 4 signal strength
• 1 Ethernet connectivity
• 1 power/booting/firmware upgrade status

Regulatory

• RoHS
