Aruba JY791A

MODEL AND CAPACITY

• Aruba Mobility Master Virtual Appliance
  • MM-VA-50
    • Number of devices: 50
    • Number of clients: 500
    • Number of controllers: 5
  • MM-VA-500
    • Number of devices: 500
    • Number of clients: 5,000
    • Number of controllers: 50
  • MM-VA-1K
    • Number of devices: 1,000
    • Number of clients: 10,000
    • Number of controllers: 100
  • MM-VA-5K
    • Number of devices: 5,000
    • Number of clients: 50,000
    • Number of controllers: 500
  • MM-VA-10K
    • Number of devices: 10,000
    • Number of clients: 100,000
    • Number of controllers: 1,000

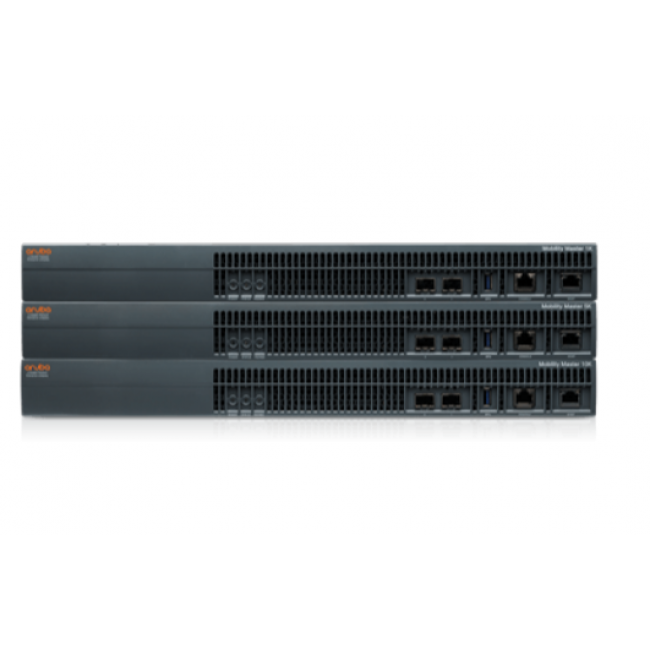

• Aruba Mobility Master Hardware Appliance
  • MM-HW-1K
    • Number of devices: 1,000
    • Number of clients: 10,000
    • Number of controllers: 100
  • MM-HW-5K
    • Number of devices: 5,000
    • Number of clients: 50,000
    • Number of controllers: 500
  • MM-HW-10K
    • Number of devices: 10,000
    • Number of clients: 100,000
    • Number of controllers: 1,000

ENVIRONMENTAL

• Operating temperature range: 0°C to 40°C (-40°F to 104°F)
• Operating humidity: 10% to 90% (RH) non-condensing
• Storage temperature range: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 10% to 95% (RH) non-condensing
• Operating altitude: Up to 10,000 feet

REGULATORY SKU INFORMATION

• Regulatory Model: ARCNMMHW

DIMENSIONS AND WEIGHT

• (H) 4.4 cm x (W) 44.2 cm x (D) 40.1 cm (1.73" x 17.40" x 15.79")
• Weight 7.2 kg (15.87 lbs)

INTERFACES AND INDICATORS

• Two 10GBASE-X (SFP+) ports
• One 1GBASE-T Management port
• One USB 3.0
• One RJ45 Console port
• Port LINK/ACT and status LEDs
• Front panel LEDs – Power, Status, Peered

POWER SUPPLY SPECIFICATIONS

• Dual 400-watt load shared redundant configuration
• Input: 100-240V AC
• Output: 12V DC
• AC Input Current: 6.0 A max
• AC Input Frequency: 50-60 Hz

ACOUSTIC NOISE

• Sound pressure: 57 dBA*
• Sound power: 64.4dBA**
• Sound power per ETSI 300 753; Sound pressure per ISO 7779

* Measured @ rear center
** Nominal fan speed @ room temperature

POWER CONSUMPTION

• 120W (Ubuntu running all cores, memory test, 10G traffic, this may vary by 10% based on software config)

REGULATORY AND SAFETY COMPLIANCE

• FCC Part 15 Class A CE
• Industry Canada Class A
• VCCI Class A (Japan)
• EN 55032 Class A (CISPR 32 Class A), EN 61000-3,
• EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
• EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
• EN 61000-4-11, EN 55024, AS/NZS 3548
• UL 60950, EN60950
• CAN/CSA 22.2 #60950
• CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

MINIMUM ARUBAOS RELEASE FOR THE MOBILITY MASTER HARDWARE

• ArubaOS 8.1

WARRANTY

• Hardware: 1 year parts/labor*
• Software: 90 days*

* Extended with support contract.
