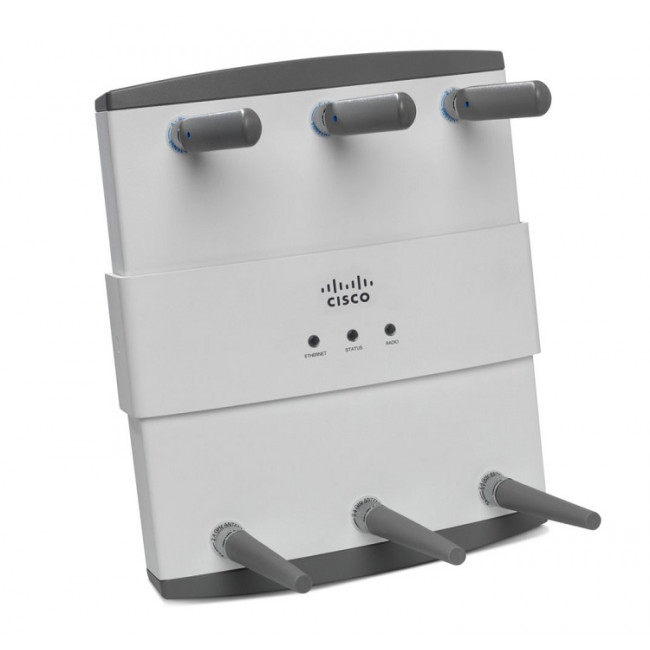

Cisco AIR-LAP1252AG-E-K9

A

C

E

I

J

K

N

P

S

T

FCC (США)

China

ETSI

Israel

TELEC (Japan)

Korea

North America (исключая FCC)

Japan2

Singapore

Taiwan

Manufacturer:

Cisco

Product ID:

AIR-LAP1252AG-E-K9

Product Description:

802,11a/g/n-d2,0 2.4/5-GHz Mod Unified AP; 6 RP-TNC; ETSI

Product Type:

Wireless Access Point

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5.70 GHz

Total Number of Antennas:

6

Antenna Connector:

RP-TNC Connector

Wireless Transmission Speed:

600 Mbps

Wireless Security:

• WPA
• WPA2
• 802.11i
• 802.1X
• TKIP

Interfaces/Ports

Gigabit Ethernet Port:

Yes

Number of Network (RJ-45) Ports:

1

Management Port:

Yes

Management & Protocols

Management:

• Command Line Interface (CLI)
• Browser based management
• DHCP
• Simple Network Management Protocol (SNMP)

Power Description

Input Voltage:

110 V AC

220 V AC

Power Source:

Power Supply

Physical Characteristics

Height:

2.4"

Depth:

9.5"

Weight (Approximate):

5.10 lb

Miscellaneous

Package Contents:

• Aironet 1252 Wireless Access Point
• Cisco 1250 Series IOS WIRELESS LAN LWAPP RECOVERY (S125RK9W-12410JA)

Additional Information:

Controller-based (unified) deployment options

Certifications & Standards:

Safety:

• UL 60950-1
• CAN/CSA-C22.2 No. 60950-1
• UL 2043
• IEC 60950-1
• EN 60950-1

Radio approvals:

• FCC Part 15.247, 15.407
• RSS-210
• EN 300.328, EN 301.893
• ARIB-STD 33
• ARIB-STD 66
• ARIB-STD T71
• AS/NZS 4268.2003
• EMI and susceptibility (Class B)
• FCC Part 15.107 and 15.109
• ICES-003
• VCCI
• EN 301.489-1 and -17
• EN 60601-1-2

IEEE Standard:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n draft 2.0
• IEEE 802.11h
• IEEE 802.11d

Other:

• FCC Bulletin OET-65C
• RSS-102
• Wi-Fi
