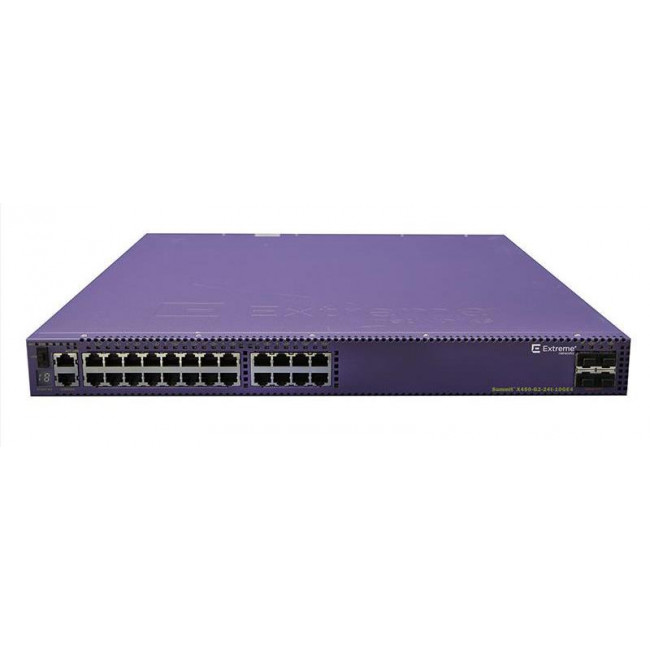

Extreme Summit X450-G2-24p-10GE4-Base

MAXIMUM ACTIVE GBE PORTS

24

MAXIMUM ACTIVE 10GBE PORTS

4

21GBPS STACKING PORTS

2

AGGREGATED SWITCH BANDWIDTH

212 Gbps

FRAME FORWARDING RATE

157.7 Mpps

PORTS

• 24 x 10/100/1000BASE-T PoE-Plus
• 4 x 10GBASE-X SFP+ (unpopulated ports)
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1 x 10/100/1000BASE-T out-of-band management port
• 1 x USB 2.0 port for external USB flash
• 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel

WEIGHT

13.93 lb (6.32 kg)

PHYSICAL DIMENSION

Height: 1 RU / 1.73 inches (4.4 cm) Width: 17.4 inches (44.2 cm) Depth: 19.2 inches (48.8 cm)

MINIMUM HEAT DISSIPATION

214.3

MINIMUM POWER CONSUMPTION

62.8

MAXIMUM HEAT DISSIPATION

604.7

MAXIMUM POWER CONSUMPTION

127.2
