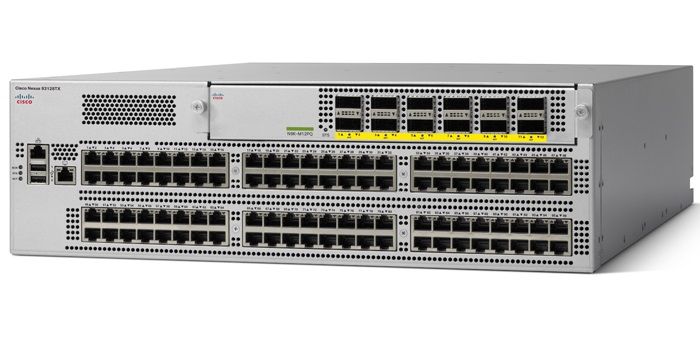

Cisco Nexus N9K-C93128TX

Product Name

Nexus 9300 with 96P 1/10G-T & 1 Uplink Mod

Manufacturer Part Number

N9K-C93128TX

Product Line

Nexus

Product Series

9000

Product Model

93128TX

Product Type

Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports

96

Port / Expansion Slot Details

96 x 10 Gigabit Ethernet Network

8 x 40 Gigabit Ethernet Expansion Slot

I/O Expansions

Number of Total Expansion Slots

8

Expansion Slot Type

QSFP+

Media & Performance

Media Type Supported

Twisted Pair

Ethernet Technology

10 Gigabit Ethernet

40 Gigabit Ethernet

Network Technology

10GBase-T

40GBase-X

Network & Communication

Layer Supported

3

Power Description

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Management & Protocols

Manageable

Yes

Physical Characteristics

Form Factor

Rack-mountable

Height

5.3"

Width

22.5"

Depth

17.5"

Warranty

Limited Warranty

1 Year

Miscellaneous

Environmentally Friendly

Yes

Environmental Certification

RoHS-6

Other Information

Product Family

Nexus 9000

PoE (RJ-45) Port

No

Token Ring Port

No

LRE Port

No

USB

Yes

Number of Network (RJ-45) Ports

96

Management Port

Yes

Bypass

No

Certifications & Standards

IEEE Standards:

• 802.1D
• 802.1p
• 802.1Q
• 802.1w
• 802.1s
• 802.1AB
• 802.3ad
• 802.3x
• 802.3ab
• 802.3z
• 802.3ae
• 802.3ba

Safety:

• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition
• IEC 60950-1 Second Edition
• AS/NZS 60950-1
• GB4943

EMC: Emission

• 47CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A

EMC: Immunity

• EN55024
• CISPR24
• EN300386
• KN 61000-4 series

Management

• VLAN
• DHCP
• QoS
• Syslog
• SNMP v1,2,3
• MIB

Input Voltage

110 V AC

220 V AC
