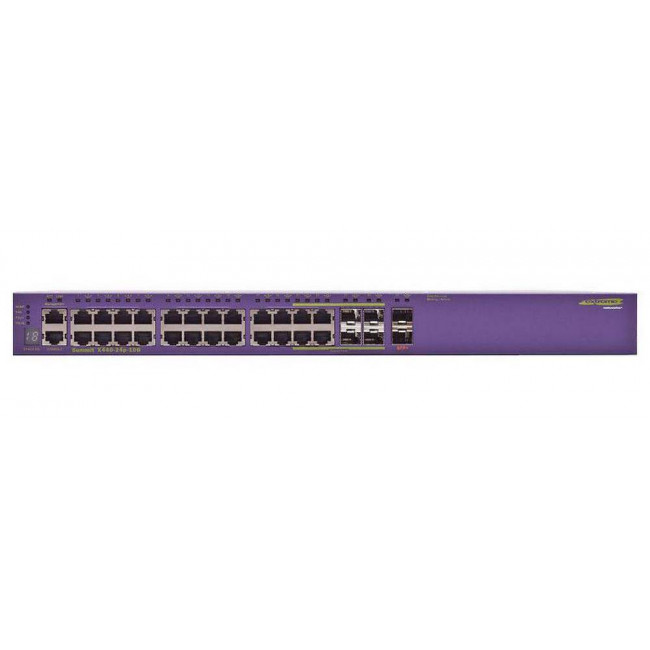

Extreme Summit X440-G2-24t-10GE4-DC

Maximum 10/100/1000 Base-T Ports

24

Maximum Active 1Gb SFP Ports

8 (4 + 4 Combo)

Maximum 10Gb SFP+ Ports

4 via license

Aggregated Switch Bandwidth*

128 GBPS

Frame Forwarding Rate*

95.2 MPPS

Ports

• 24 x 10/100/1000BASE-T (RJ-45)
• 4 x 1GBASE-X SFP (unpopulated) combo ports
• 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1 x 10/100/1000BASE-T out-of-band management port
• 2x7 RPS port

Weight

8.07 lb (3.66 kg)

Height

1  RU / 1.73 inches (4.4  cm)

Width

17.36 inches (44.1 cm)

Depth

14.51 inches (36.85 cm)

Minimum Heat Dissipation (BTU/HR)

77

Minimum Power Consumption (Watts)

23

Maximum Heat Dissipation (BTU/HR)

134

Maximum Power Consumption (Watts)

39

Power Supply Input Socket

#6 Terminal Block

Power Cord Input Plug/Input Socket

23

Power Supply Cord Gauge

Min  14AWG/2.0mm²

Redundant Power Supply Input Socket

2x7 Terminal Block

Bystand Sound Pressure

28.1 dB(A)

Declared Sound Power (LWAD)

4.3 bels
