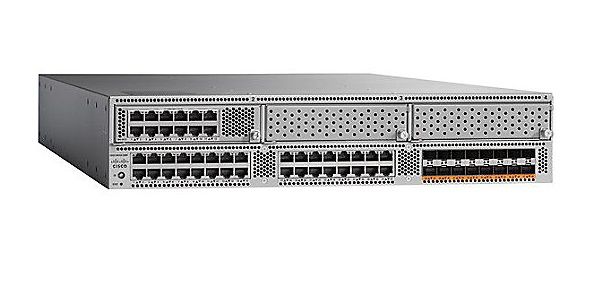

Cisco Nexus N5K-C5596T-FA

Product Name

Nexus 5596T 2RU 2PS/4FANS 32X10GTXSFP

Manufacturer Part Number

N5K-C5596T-FA

Product Line

Nexus

Product Series

5000

Product Model

5596T

Product Type

Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports

32

Modular

No

Stack Port

No

I/O Expansions

Number of Total Expansion Slots

19

Expansion Slot Type

SFP+

Shared SFP Slot

No

Number of SFP+ Slots

16

Media & Performance

Media Type Supported

Twisted Pair

Ethernet Technology

10 Gigabit Ethernet

Network Technology

10GBase-T

Network & Communication

Layer Supported

3

Power Description

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Management & Protocols

Manageable

Yes

Physical Characteristics

Compatible Rack Unit

2U

Form Factor

Rack-mountable

Height

3.5"

Width

17.3"

Depth

29.5"

Warranty

Limited Warranty

1 Year

Miscellaneous

Package Contents

• Nexus 5596T 2RU, 2PS/4Fans, 32x10GT/16xSFP+ Fixed Ports
• 2 x 1100W AC Power Supplies
• 4 x Fan Trays
• 3 x Expansion Slots

Environmentally Friendly

Yes

Environmental Certification

RoHS-6

Other Information

Product Family

Nexus 5000

PoE (RJ-45) Port

No

Token Ring Port

No

LRE Port

No

USB

No

Number of Network (RJ-45) Ports

32

Management Port

Yes

Bypass

No

Certifications & Standards

• CE Markings
• 2004/108/EC
• 2006/95/EC

Safety:

• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition
• IEC 60950-1 Second Edition
• AS/NZS 60950-1
• GB4943

Emissions:

• 47CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A

Immunity:

• EN55024
• CISPR24
• EN300386
• KN 61000-4 series

IEEE Standards:

• 802.3
• 802.1D
• 802.1Q
• 802.3x
• 802.3ad
• 802.1w
• 802.3ae
• 802.1s
• 801.1p
• 802.1Qaz
• 802.1Qbb

Management

• SNMP v1, v2, v3
• RMON
• Telnet
• CLI
• QoS
• VLAN
• MIB
• DHCP
• Web Based Management

Input Voltage

110 V AC

220 V AC
