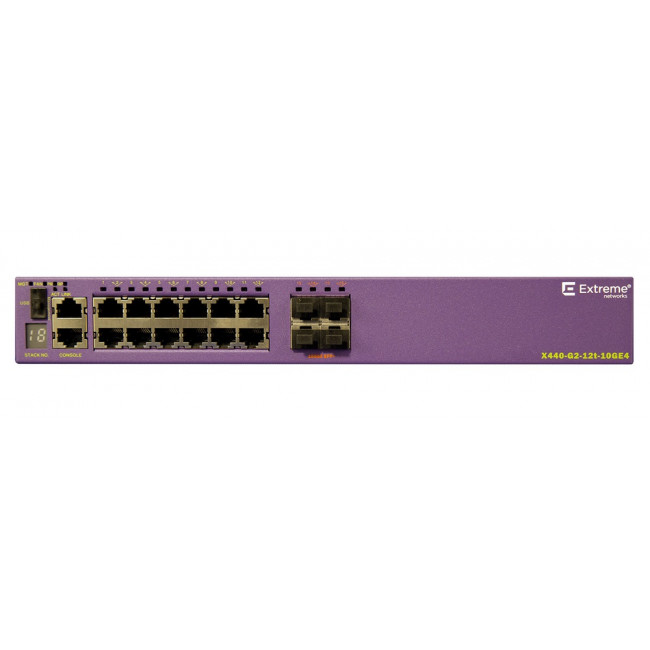

Extreme Summit X440-G2-12t-10GE4

Maximum 10/100/1000 Base-T Ports

12

Maximum Active 1Gb SFP Ports

4

Maximum 10Gb SFP+ Ports

4 via license

Aggregated Switch Bandwidth*

104 GBPS

Frame Forwarding Rate*

77.4 MPPS

Ports

• 12  x  10/100/1000BASE-T (RJ-45)
• 4 x 1GBASE-X SFP (unpopulated front-panel ports) upgradeable to 10Gb Ethernet via licensing
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1   x  10/100/1000BASE-T  out-of-band  management  port
• Coaxial Barrel Connector RPS port

Weight

5.82 lb (2.64 kg)

Height

1  RU / 1.73 inches (4.4  cm)

Width

12.01 inches (30.5 cm)

Depth

10.28 inches (26.1 cm)

Minimum Heat Dissipation (BTU/HR)

52

Minimum Power Consumption (Watts)

15

Maximum Heat Dissipation (BTU/HR)

109

Maximum Power Consumption (Watts)

32

Power Supply Input Socket

IEC 320 C14

Power Cord Input Plug/Input Socket

IEC 320 C13/C14

Power Supply Cord Gauge

Min  18AWG/0.75mm²

Redundant Power Supply Input Socket

Coaxial Barrel Connector

Bystand Sound Pressure

0 dB(A) Fan Off

Declared Sound Power (LWAD)

0 bels Fan Off
