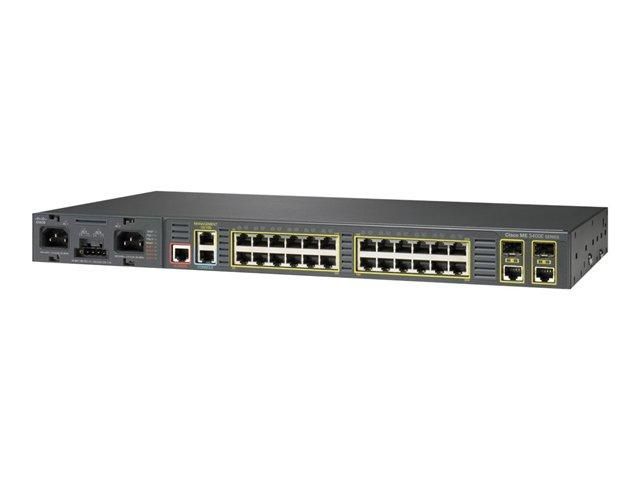

Cisco ME-3400E-24TS-M

General

Device Type

Switch - 24 ports - managed

Enclosure Type

Desktop - 1U

Subtype

Fast Ethernet

Ports

24 x 10/100 + 2 x combo Gigabit SFP

MAC Address Table Size

8K entries

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

DHCP support, VLAN support, IGMP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah

RAM

128 MB

Flash Memory

32 MB flash

Status Indicators

Link activity, link OK, status

Expansion / Connectivity

Interfaces

24 x 100Base-TX - RJ-45 2 x 1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 100Base-TX - RJ-45 - management 2 x SFP (mini-GBIC)

Power

Power Device

Internal power supply - hot-plug

Installed Qty

0 (installed) / 2 (max)

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Miscellaneous

Compliant Standards

VCCI Class A ITE, EN55024, EN55022 Class A, EN300-386, UL 60950-1, EN 60950-1, FCC Part 15 A

Dimensions & Weight

Approximate Width

17.5 in

Approximate Depth

9.3 in

Approximate Height

1.8 in

Approximate Weight

6.4 lbs

Environmental Parameters

Min Operating Temperature

32

Humidity Range Operating

10 - 85%
