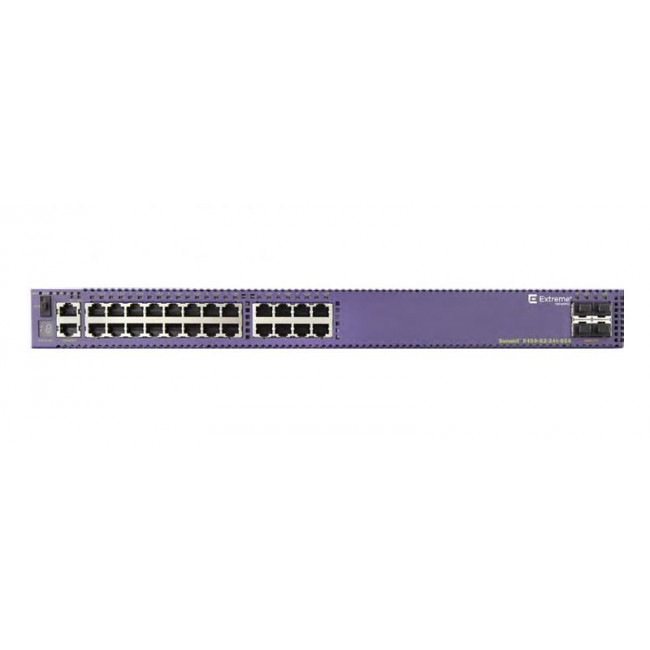

Extreme Summit X450-G2-24t-GE4-Base

MAXIMUM ACTIVE GBE PORTS

28

MAXIMUM ACTIVE 10GBE PORTS

0

21GBPS STACKING PORTS

2

AGGREGATED SWITCH BANDWIDTH

140 Gbps

FRAME FORWARDING RATE

104.2 Mpps

PORTS

• 24 x 10/100/1000BASE-T (RJ-45)
• 4 x 1GBASE-X SFP (unpopulated ports)
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1 x 10/100/1000BASE-T out-of-band management port
• 1 x USB 2.0 port for external USB flash
• 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel

WEIGHT

13.71 lb (6.22 kg)

PHYSICAL DIMENSION

Height: 1 RU / 1.73 inches (4.4 cm) Width: 17.4 inches (44.2 cm) Depth: 19.2 inches (48.8 cm)

MINIMUM HEAT DISSIPATION

149.4

MINIMUM POWER CONSUMPTION

43.8

MAXIMUM HEAT DISSIPATION

244.6

MAXIMUM POWER CONSUMPTION

71.1
