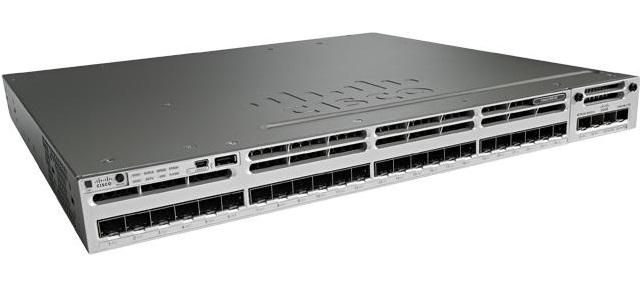

Cisco WS-C3850-24S-E

Product Name

Catalyst 3850 24 Port Ge SFP Ip Service

Product Line

Catalyst

Product Series

3850

Product Model

WS-C3850-24S-E

Product Type

Layer 3 Switch

Interfaces/Ports

Modular

Yes

Stack Port

Yes

Port / Expansion Slot Details

24 x Gigabit Ethernet Expansion Slot

I/O Expansions

Number of Total Expansion Slots

25

Expansion Slot Type

SFP

Network Interface Module (NIM)

Shared SFP Slot

No

Number of SFP Slots

24

Media & Performance

Media Type Supported

Optical Fiber

Ethernet Technology

Gigabit Ethernet

Network Technology

1000Base-X

Network & Communication

Layer Supported

3

Power Description

Power Source

Power Supply

Management & Protocols

Manageable

Yes

Physical Characteristics

Compatible Rack Unit

1U

Form Factor

Rack-mountable

Warranty

Limited Warranty

Lifetime

Miscellaneous

Package Contents

• Catalyst WS-C3850-24S-E Layer 3 Switch
• 350WAC Power Supply

Environmentally Friendly

Yes

Environmental Certification

RoHS-5

Other Information

Product Family

Catalyst 3850

PoE (RJ-45) Port

No

Token Ring Port

No

LRE Port

No

Management Port

Yes

Memory Technology

DRAM

Certifications & Standards

IEEE Standards:

• 802.1s
• 802.1w
• 802.11
• 802.1x
• 802.1x-Rev
• 802.3ad
• 802.3x
• 802.1D
• 802.1p
• 802.1Q
• 802.3
• 802.3z

EMC:

• 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• KCC
• CNS13438 Class A
• EN55024
• CISPR24
• KN24

Safety:

• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition
• IEC 60950-1 Second Edition
• GOST
• NOM

MTBF

300760 Hour

Management

• Web Based Management
• Telnet
• CLI
• DHCP
• QoS
• VLAN
• RMON I and II standards
• SNMP v1, v2c, and v3
• Syslog
• MIB

Flash Memory

2 GB

Input Voltage

120 V DC

230 V AC

Standard Memory

4 GB
