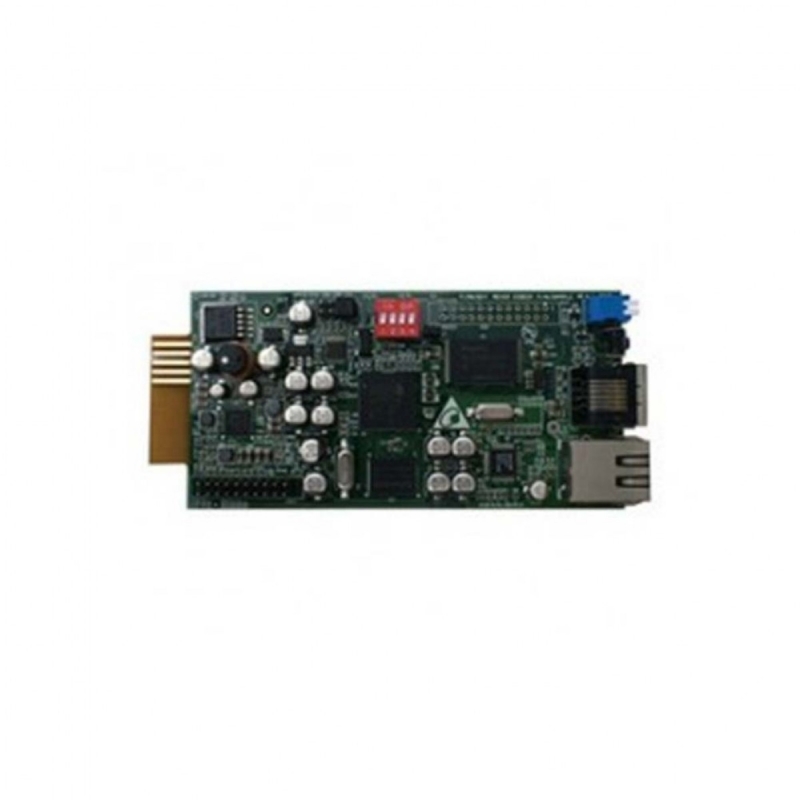

Delta 3915100975-S35

Network

• SNMP

SNMPv1/v3 protocol support; accepts NMS monitoringas well as actively sends Trap packets to target hosts.

• HTTP/HTTPS

Monitor and set up through network browser with builtinweb server.

• Others

Telnet, SSH, FTP, SFTP, BOOTP, DHCP, SMTP, SNTPand RADIUS, Syslog.

• MIB

Supports RFC1628 and custom defined UPSv4 MIB.

Management

• Regular power on and off

Can set up UPS power on and off time.

• Regular testing

Battery discharge test to ensure the battery is in goodcondition.

• Smart power off

Can send power off signal to connected host activelyif the host computer has the InsightPower Client orSNMP power off proxy installed.

• Sensor

Optional environment sensor can integrate ambienttemperature and humidity for total cabinet monitoring.

Diagnosis

• Event log

Keep date, time, and event sequence in event log file.

• History records

Keep date, time, and UPS parameter data. Can beexported into XLS file for further processing.

Reaction to events

• UPS shutdown

Define delay time for UPS power off to avoid deepdischarge.

• Email

Send email notification to predefined recipients in caseof power event.

• Application

Integrate the communication requirement of UPS, PDC, STS, ATS and cooling with dip switches selection in one single SNMP IPv6 card
