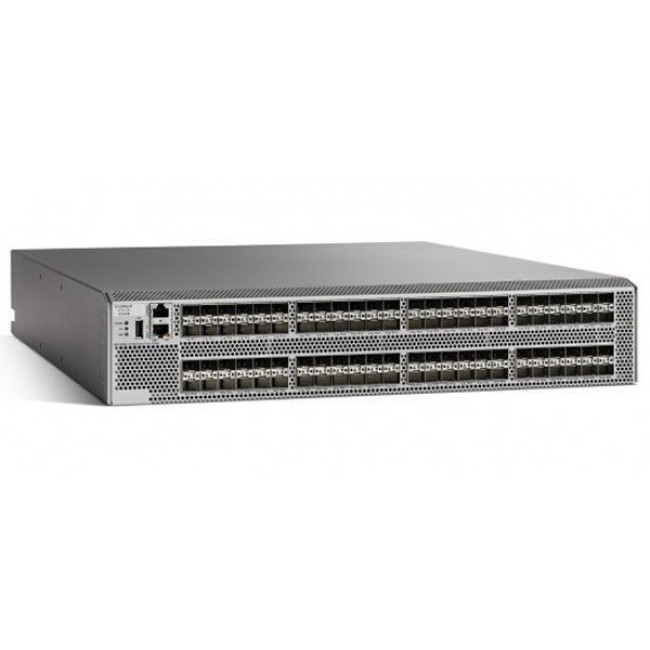

Cisco DS-C9396S-96ESK9

Included Accessories

2 fan trays, accessory kit

Compliant Standards

CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, FCC CFR21 Part 1040, EN 60825, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55024, EN 55022 Class A, FCC CFR47 Part 15 A

Width

17.4 in

Depth

22.3 in

Height

3.4 in

Weight

39.24 lbs

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F

Humidity Range Storage

10 - 95% (non-condensing)

Device Type

Switch - 96 ports - managed - with 96x 18Gb Fibre Channel SFP+ transceiver

Enclosure Type

Rack-mountable 2U

Subtype

Fibre Channel

Ports

96 x 16Gb Fibre Channel

Remote Management Protocol

RMON, SNMP 3, SMI-S, SSH-2, CLI

Features

Ports on Demand, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Registered State Change Notification (RSCN) support, port exhaust

Interfaces

1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) ¦ 1 x USB ¦ 96 x 16Gb Fibre Channel SFP+ ¦ 96 x 16Gb Fibre Channel SFP+ Ports on Demand

Power Device

Internal power supply - hot-plug

Installed Qty

2 (installed) / 2 (max)

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Power Provided

1200 Watt

Voltage Required

AC 100/230 V (50/60 Hz)

Power Consumption Operational

700 Watt
