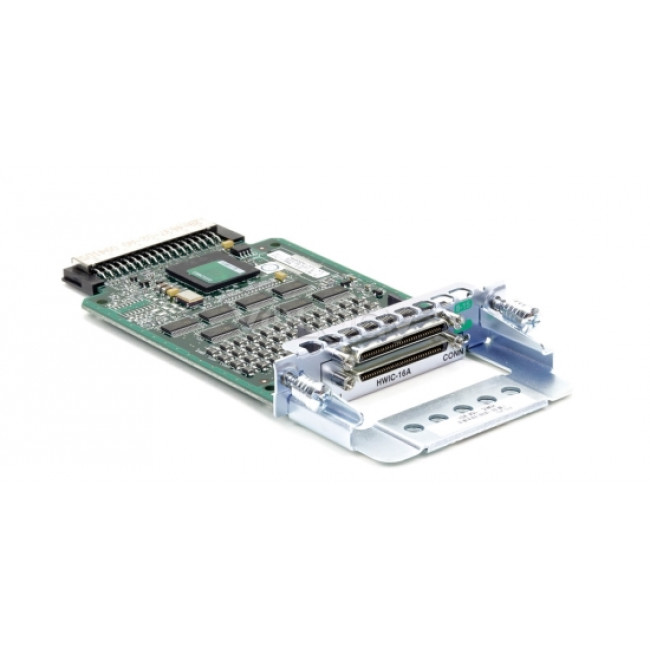

Cisco HWIC-16A

General Information

Manufacturer:

Cisco

Product ID:

HWIC-16A

Product Description:

16-Port Async HWIC

Product Type:

HWIC

Technical Information

Application/Usage:

Wide Area Network

Interfaces/Ports

Interfaces/Ports:

16 x Asynchronous Serial WAN

Media & Performance

Connectors:

High-density 8-port connector

Data Transfer Rate:

230.40 Kbps Maximum Asynchronous Serial Per Port

Management & Protocols

Protocols:

X.25, TCP/IP, SDLC

Environmental Conditions

Temperature:

32°F (0°C) to 104°F (40°C) Operating

-4°F (-20°C) to 149°F (65°C) Storage

Humidity:

10% to 90% Non-condensing Relative Humidity

Physical Characteristics

Dimensions:

0.8" Height x 3.1" Width x 5.6" Depth

Miscellaneous

Additional Information:

· The HWIC-16A uses 8-port cables with a high-density 60-pin connector on the HWIC side, and 8 RJ-45 plugs on the other end

· The RJ-45 plugs can connect directly to the console ports of Cisco routers and switches, or to other equipment by using RJ-45 to DB-25 adapters

· DCN (Data Communications Network)

· Lead Manipulation

· Network Clock Synchronization

· Systems Network Architecture (SNA)

Certifications & Standards:

Agency Approvals:

·  UL 1950 (United States)

·  CSA-C22.2 #950 (Canada)

·  EN60950 (Europe)

·  TUV GS (Germany)

·  IEC 950 (International)

Immunity:

·  EN300386

·  EN55024/CISPR24

·  EN50082-1

Emissions:

·  FCC Part 15 Class A

·  ICES-003 Class A

·  EN55022 Class A

·  CISPR22 Class A

·  AS/NZS 3548 Class A

·  VCCI Class A

·  EN 300386

·  EN61000-3-3

·  EN61000-3-2
