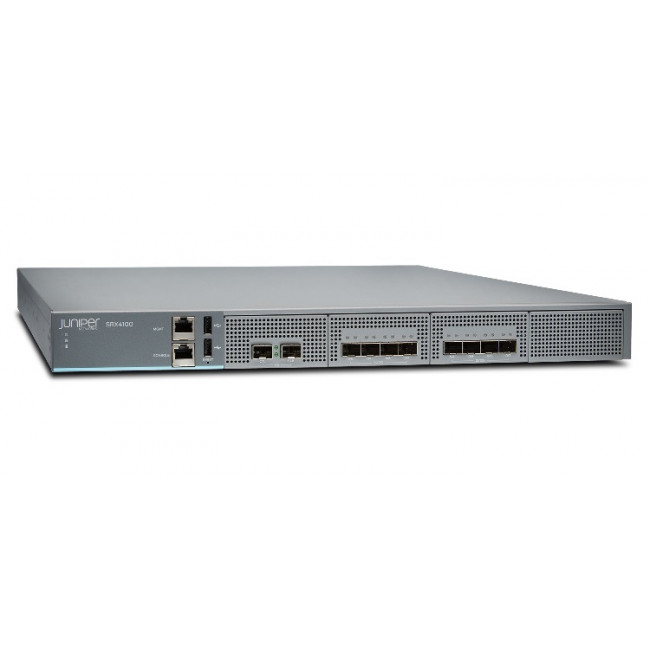

Juniper SRX4100-SYS-JE-DC

Connectivity

SRX4100

Total onboard ports

8x1GbE/10GbE

Onboard small form-factor pluggable plus (SFP+) transceiver ports

8x1GbE/10GbE

Out-of-Band (OOB) management ports

1x1GbE

Dedicated high availability (HA) ports

2x1GbE/10GbE (SFP/SFP+)

Console (RJ-45)

1

USB 2.0 ports (type A)

2

Memory and Storage

System memory (RAM)

64 GB

Secondary storage (SSD)

240 GB with 1+1 RAID

Dimensions and Power

Form factor

1 U

Size (WxHxD)

17.48 x 1.7.x.25 in (44.39 x 4.31 x 63.5 cm)

Weight (device and PSU)

Chassis with two AC power supplies: 29 lb (13.15 kg)

Chassis with two DC power supplies: 28.9 lb (13.06 kg) Chassis with package for shipping:

47.5 lb (21.54 kg)

Redundant PSU

1+1

Power supply

2x 650 W redundant AC-DC/DC-DC PSU

Average power consumption

200 W

Average heat dissipation

685 BTU / hour

Maximum current consumption

4A (for 110 V AC power) 2A (for 220 V AC power) 9A (for -48 V DC power)

Maximum inrush current

50 A by 1 AC cycle

Acoustic noise level

70 dBA

Airflow/cooling

Front to back

Operating temperature

32° to 104° F (0° to 40° C)

Operating humidity

5% to 90% noncondensing

Meantime between failures (MTBF)

12 years (105,120 hours)

FCC classification

Class A

RoHS compliance

RoHS 2

Performance and Scale

Routing/firewall (64 B packet size) throughput Gbps

5

Routing/firewall (IMIX packet size) throughput Gbps

20

Routing/firewall (1,518 B packet size) throughput Gbps

40

IPsec VPN (IMIX packet size) Gbps

5

IPsec VPN (1,400 B packet size) Gbps

10

Application visibility and control in Gbps

18

Recommended IPS in Gbps

10

Next-generation firewall in Gbps

7

Connections per second (CPS)

175,000

Maximum security policies

60,000

Maximum concurrent sessions (IPv4 or IPv6)

5 million

Route table size (RIB/FIB) (IPv4 or IPv6)

2 million/2 million
