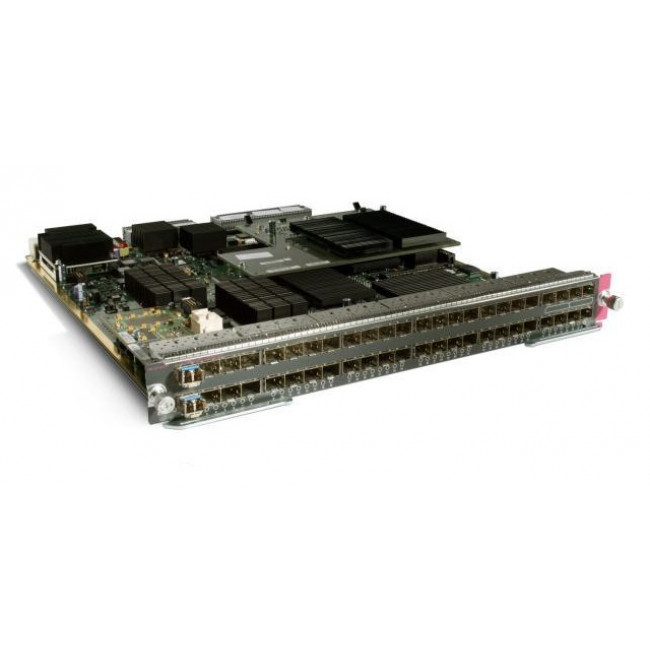

Cisco WS-X6748-SFP

Manufacturer:

Cisco

Product ID:

WS-X6748-SFP

Product Description:

Catalyst 6500 48-port GigE Mod fabric-enabled (Req. SFPs)

Product Type:

Expansion Module

Technical Information

Application/Usage:

Data Networking

Media & Performance

Media Type Supported:

Optical Fiber

Maximum Data Transfer Rate:

1

I/O Expansions

Number of Total Expansion Slots:

48

Expansion Slot Type:

SFP (mini-GBIC)

Physical Characteristics

Height:

1.2"

Width:

14.4"

Depth:

16"

Miscellaneous

Additional Information:

• Primary Applications: High performance distribution, core layer and data center
• Mean time between failures (MTBF): seven years for system configuration
• Scheduler: Deficit Weighted Round Robin (DWRR)
• Buffer Size per Port: Rx-166KB, Tx-1.17MB
• Optional DFC Upgrade Support: Use WS-F6700-DFC3 with Supervisor Engine 720
• Backplane/Switch Fabric Connections
• This modules also offer a choice of packet buffer depths for traffic shaping, and QoS granularity with varying number of queues and drop threshold options

Performance/Forwarding Rate (Mpps):

• 720 Gbps using CEF; Up to 30 Mpps per system
• Using dCEF upgrade: up to 48 Mpps

Compatibility:

• Cisco 7600 Series Routers
• Catalyst 6506, 6509, 6509-NEB-A, 6513 chassis
