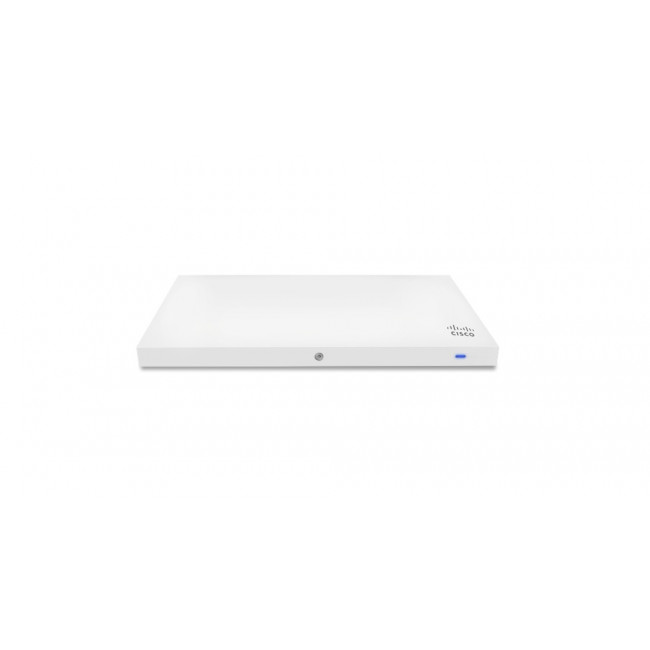

Cisco Meraki MR33-HW

Технические характеристики точки доступа Cisco Meraki MR33-HW:

Radios

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac client access radio
• 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
• Concurrent operations of all four radios

Operating Bands

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHZ (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725 -5.825 GHz (UNII-3)

802.11ac & 802.11n Capabilities

• 2x2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
• Up to 256 QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet: 37 - 57 V (802.3af compatible)
• Alternative 12 V DC input
• Power consumption: 11W max (802.3af)
• Power over Ethernet injector and DC adapter sold separately

Mounting

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

• Two security screw options (included)
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 8.5” x 4.3” x 1.3” (215 mm x 110 mm x 32 mm), not including deskmount feet or mount plate
• Weight: 13.2 oz (376.5 g)

Antenna

• Integrated omni-directional antennas (3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)

Interfaces

• 1 × 10/100/1000 BASE-T Ethernet (RJ45)
• 1 × DC power connector (5.5 mm x 2.5 mm, center positive)

Security

• Integrated layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralized layer 3 roaming

LED Indicators

• 4x 2 Ethernet status for Ethernet ports
• 1 power/booting/firmware upgrade status
