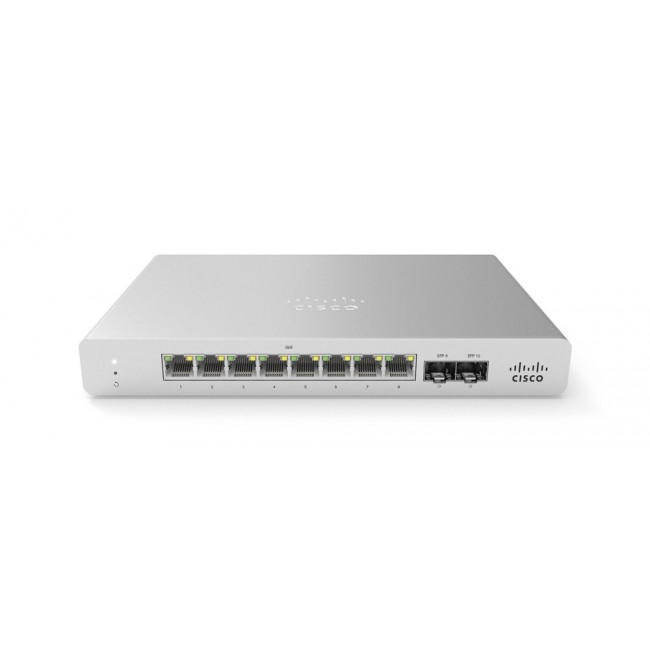

Cisco Meraki MS120-8-HW

Коммутаторы Cisco семейства Meraki созданы для крупных предприятий и объединяют в себе производительность и гибкость. Cisco CloudManagement позволит, после подключения сетевого кабеля, удалённо произвести настройку коммутатора через облачные приложения, не затрачивая дополнительных средств на конфигурацию устройства. Также, предоставляет набор инструментов для управления и мониторинга сетями.

Технические характеристики коммутатора Cisco Meraki MS120-8-HW:

 Interfaces

• 8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
• 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 30W per port for PoE+)
• 2 × SFP 1 Gigabit Ethernet interfaces for uplink
• Auto negotiation and crossover detection

Management

• Managed via the web with the Meraki cloud management platform
• Integrated with Meraki wireless and complete portfolio of IT products and solutions
• Zero-touch remote provisioning (no staging needed)
• Detailed historical per-port and per-client usage statistics
• DHCP, client, and hostname fingerprinting
• SNMP and Syslog support for integration with other network management solutions
• Automatic firmware upgrades with scheduling control

Remote diagnostics

• Email, SMS and mobile push notification alerts1
• Cable testing and link failure detection with alerting
• Live remote packet capture
• Dynamic and interactive network discovery and topology
• Combined event and configuration change logs with instant search

Stacking

• Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet switching capabilities

• 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
• 802.1Q VLAN and trunking support for up to 4,094 VLANs
• 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
• Broadcast storm control
• IGMP Snooping
• 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
• 802.3ad Link aggregation with up to 8 ports per aggregate
• Port mirroring
• MAC forwarding entries: 16,000

Security

• Integrated two-factor authentication for Dashboard management
• Role-based access control (RBAC) with granular device and configuration control
• SSO, Corporate-wide password policy enforcement
• IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
• MAC-based RADIUS authentication (MAB)
• Port security: Sticky MAC, MAC whitelisting
• DHCP snooping, detection and blocking
• STP Enhancements include BPDU guard, Root guard
• IPv4 ACLs

Power over Ethernet

• 802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
• Maximum PoE output: 67/124W
• PoE available on all ports simultaneously

Performance

• Switching capacity: 20Gbps
• Forwarding rate: 14.88mpps with standard packet size
• Jumbo frame support (9578 byte Ethernet frame)
• Flow control support

Power

• Power input: 100 - 240 VAC, 47-63 Hz
• Power consumption: 5 - 161W
• External power supply for MS120-8, MS120-8 LP

Mounting

• Wall or utility board mountable with included mount hardware
• Desktop-mountable with included feet
• Kensington lock slot included

Environment

• Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C
• Humidity: 5 to 95% non-condensing
• Fanless operation

Regulatory

• CSA-US (US, Canada)
• FCC (USA)
• IC (Canada)
• CE (Europe)
• RCM (Australia/New Zealand)
• RoHS

Warranty

• Full lifetime hardware warranty with next-day advanced replacement included

MTBF

• MS120-8 1,307,036
• MS120-8LP 837,035
• MS120-8FP 579,132

Physical dimensions (H×W×D)

• MS120-8: 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
• MS120-8LP: 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
• MS120-8FP: 1.75” × 8.97” × 8.58” (4.4 × 22.7 × 23cm)

Physical Weight

• MS120-8: 2.36 lb (1.07 kg)
• MS120-8LP:2.76 lb (1.25 kg)
• MS120-8FP: 3.42 lb (1.55 kg)
