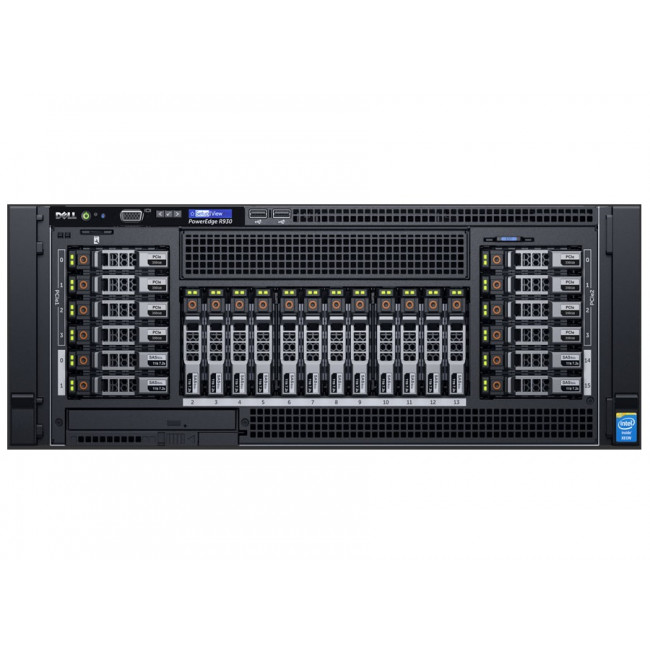

DELL PowerEdge R930

Form factor

4U

Dimensions

H: 86.8 mm (3.417 in), W: 482.4 mm (18.99 in), D: 811.06 mm (31.93 in) with PSU and bezel D: 776.46 mm (30.59 in) PSU without bezel

Processor

Intel Xeon E7-8800 v4 and E7-4800 v4 processors

Processor sockets

4

Internal interconnect

Intel QuickPath Interconnect (QPI)

Cache

Up to 60MB

Chipset

Intel C602J

Memory

Up to 12TB (96 DIMM slots): 8GB/16GB/32GB/64GB/128GB DDR4, RDIMM, LRDIMM up 2400MT/s

I/O slots

Up to 10 PCIe 3.0 slots + 1 RAID slot + 1 NDC slot

RAID controllers

Internal controllers: PERC H330, PERC H730P External HBAs (RAID): PERC H830

External HBAs (non-RAID): 12Gbps SAS HBA

Hard drives

2.5" SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)

2.5" PCIe SSDs: Dell PowerEdge NVMe Express Flash PCIe SSD

Drive bays

Up to 24 2.5" hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD

Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)

Remote management

iDRAC8 with Lifecycle Controller iDRAC8 Express (default)

iDRAC8 Enterprise (upgrade option)

8GB or 16GB vFlash media (upgrade options)

Systems management

IPMI 2.0 compliant

Dell OpenManage Essentials Dell OpenManage Mobile

Dell OpenManage Power Center Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System Center
• Dell OpenManage Integration for VMware® vCenter Dell  OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle Database Manager

Power supplies

Hot-plug redundant PSUs: 750W AC, 1100W AC

Availability

Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module

Operating systems

Microsoft® Windows Server® 2012 R2 Microsoft Windows Server 2012 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®

VMware vSphere® ESXi™

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
