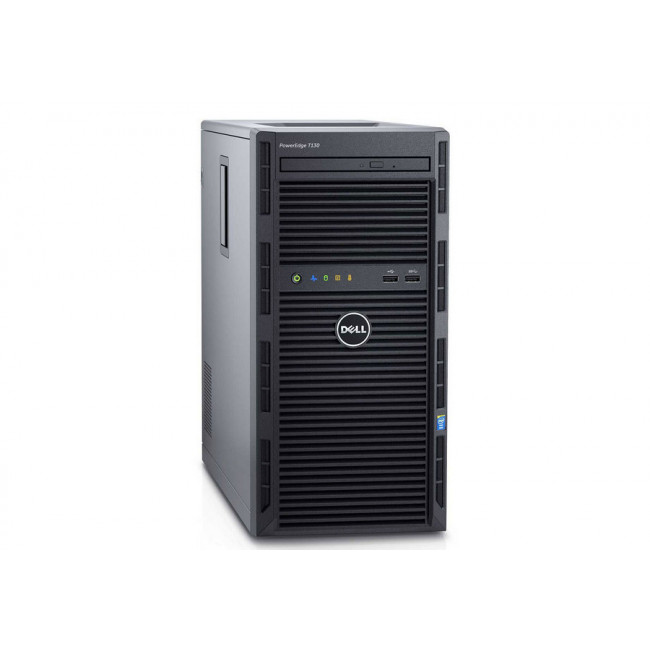

DELL PowerEdge T130

Form factor

Mini tower server

Processor

1 processor from the following product families:

• Intel® Xeon® processor E3-1200 v5 product  family
• Intel Pentium®
• Intel CoreTM i3

Chipset

Intel C236

Operating system

Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux®

VMware® vSphere® 2015

Memory

Architecture: Up to 2133MT/s DDR4 DIMMs Memory type: UDIMMs

Memory module sockets: 4 Maximum RAM: Up to 64GB

Hypervisor support

Microsoft Windows Server with Hyper-V® Citrix®  XenServer®

VMware vSphere ESXi®

Storage

3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs 3.5” 7.2K SATA entry drives

Drive bays

4 x 3.5” cabled HDDs

Slots

1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector) 1x4 PCIe 3.0 (x8 connector) 1x1 PCIe 3.0 (x1 connector)

RAID controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network controller

Broadcom®  BCM5720

Communications

Intel quad-port and dual-port 1Gb server adapters Broadcom quad-port 1Gb Base-T adapter Broadcom dual-port 1Gb Base-T adapter

Power

290W cabled PSU

Management

Systems management: IPMI 2.0 compliant

• Dell OpenManage Essentials
• Dell  OpenManage Mobile
• Dell OpenManage Power Center

Dell  OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System  Center
• Dell OpenManage Integration for VMware vCenter™

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:

• iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

Device Access

8 total USB:

• Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
• Front USB: 1 x USB 2.0 plus 1 x USB 3.0

Dimensions

Height: 14.17 in /36.0 cm Width: 6.89 in/17.5 cm Depth: 17.12 in /43.5 cm
