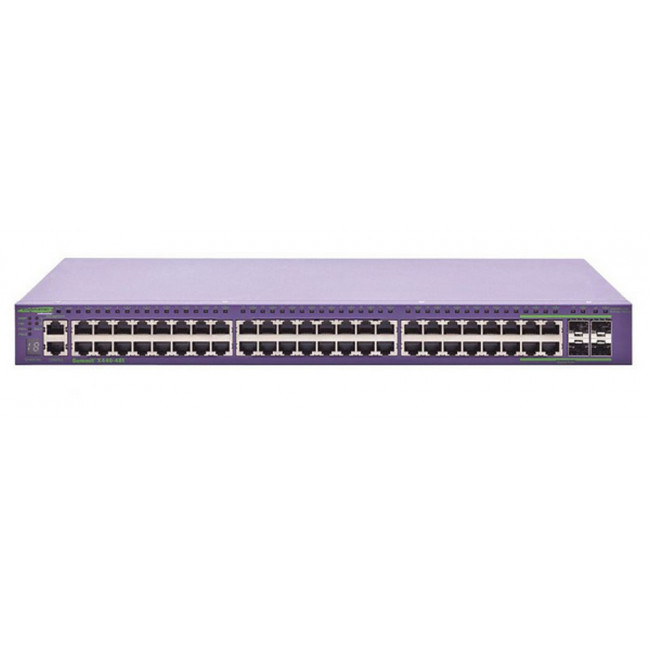

Extreme Summit X440-G2-48p-10GE4

Maximum 10/100/1000 Base-T Ports

48

Maximum Active 1Gb SFP Ports

8 (2 + 6 Combo)

Maximum 10Gb SFP+ Ports

4 via license

Aggregated Switch Bandwidth*

176 GBPS

Frame Forwarding Rate*

130.9 MPPS

Ports

• 48 x 10/100/1000BASE-T PoE-Plus
• 4 x 1GBASE-X SFP (unpopulated) combo ports
• 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel
• 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1   x  10/100/1000BASE-T  out-of-band  management  port
• 2x7 RPS port

Weight

14.55 lb (6.60 kg)

Height

1  RU / 1.73 inches (4.4  cm)

Width

17.36 inches (44.1 cm)

Depth

10.01 inches (25.4 cm)

Minimum Heat Dissipation (BTU/HR)

196

Minimum Power Consumption (Watts)

53

Maximum Heat Dissipation (BTU/HR)

755 (@740W PoE)

Maximum Power Consumption (Watts)

961

Power Supply Input Socket

IEC 320 C14

Power Cord Input Plug/Input Socket

IEC 320 C13/C14

Power Supply Cord Gauge

Min 16AWG/1.25mm² (100-125VAC),

Min 18AWG/.75mm²

(200-240VAC)

Redundant Power Supply Input Socket

2x7 Terminal Block

Bystand Sound Pressure

48.7 dB(A)

Declared Sound Power (LWAD)

6.4 bels
