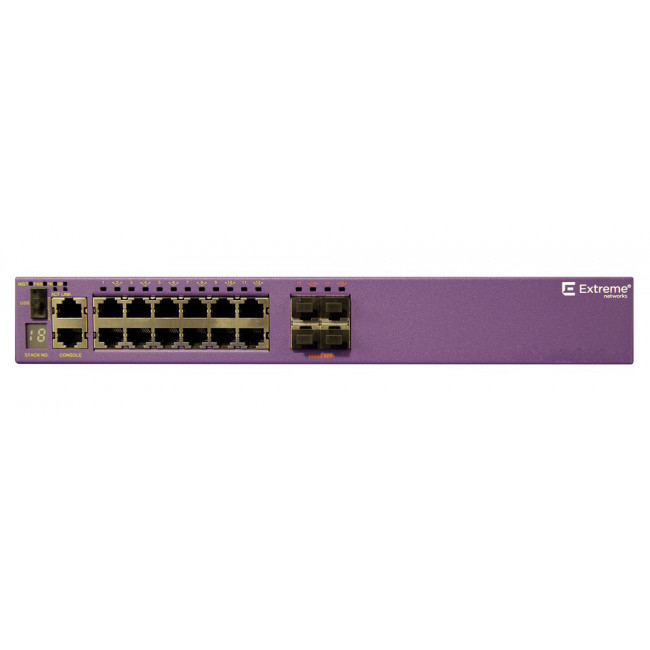

Extreme Summit X440-G2-12t8fx-GE4

Maximum 10/100/1000 Base-T Ports

12 10/100/1000 +

8 100 Base-FX

Maximum Active 1Gb SFP Ports

4

Maximum 10Gb SFP+ Ports

0

Aggregated Switch Bandwidth*

33.6 GBPS

Frame Forwarding Rate*

25.0 MPPS

Ports

• 12 x 10/100/1000BASE-T with 8 x 100Base-FX – LC connectors
• 4 x 1GBASE-X SFP (unpopulated front-panel ports)
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1   x  10/100/1000BASE-T  out-of-band  management  port
• 2x7 RPS port

Weight

6.50 lb (2.95 kg)

Height

1  RU / 1.73 inches (4.4  cm)

Width

12.01 inches (30.5 cm)

Depth

10.28 inches (26.1 cm)

Minimum Heat Dissipation (BTU/HR)

108

Minimum Power Consumption (Watts)

32

Maximum Heat Dissipation (BTU/HR)

159

Maximum Power Consumption (Watts)

47

Power Supply Input Socket

IEC 320 C14

Power Cord Input Plug/Input Socket

IEC 320 C13/C14

Power Supply Cord Gauge

Min  18AWG/0.75mm²

Redundant Power Supply Input Socket

2x7 Terminal Block

Bystand Sound Pressure

23.3 dB(A)

Declared Sound Power (LWAD)

4.0 bels
