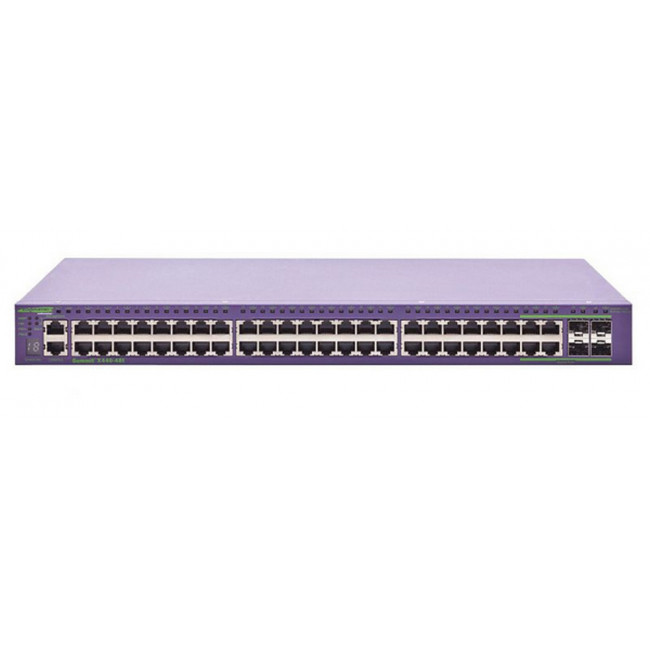

Extreme Summit X440-G2-48t-10GE4

Maximum 10/100/1000 Base-T Ports

48

Maximum Active 1Gb SFP Ports

8 (2 + 6 Combo)

Maximum 10Gb SFP+ Ports

4 via license

Aggregated Switch Bandwidth*

176 GBPS

Frame Forwarding Rate*

130.9 MPPS

Ports

• 48 x 10/100/1000BASE-T (RJ-45)
• 4 x 1GBASE-X SFP (unpopulated) combo ports
• 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel
• 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
• 1 x Serial (console port RJ-45) with RTS/CTS modem control
• 1   x  10/100/1000BASE-T  out-of-band  management  port
• 2x7 RPS port

Weight

11.22 lb (5.09 kg)

Height

1  RU / 1.73 inches (4.4  cm)

Width

17.36 inches (44.1 cm)

Depth

14.51 inches (36.85 cm)

Minimum Heat Dissipation (BTU/HR)

141

Minimum Power Consumption (Watts)

41

Maximum Heat Dissipation (BTU/HR)

208

Maximum Power Consumption (Watts)

61

Power Supply Input Socket

IEC 320 C14

Power Cord Input Plug/Input Socket

IEC 320 C13/C14

Power Supply Cord Gauge

Min  18AWG/0.75mm²

Redundant Power Supply Input Socket

2x7 Terminal Block

Bystand Sound Pressure

37.9 dB(A)

Declared Sound Power (LWAD)

5.4 bels
