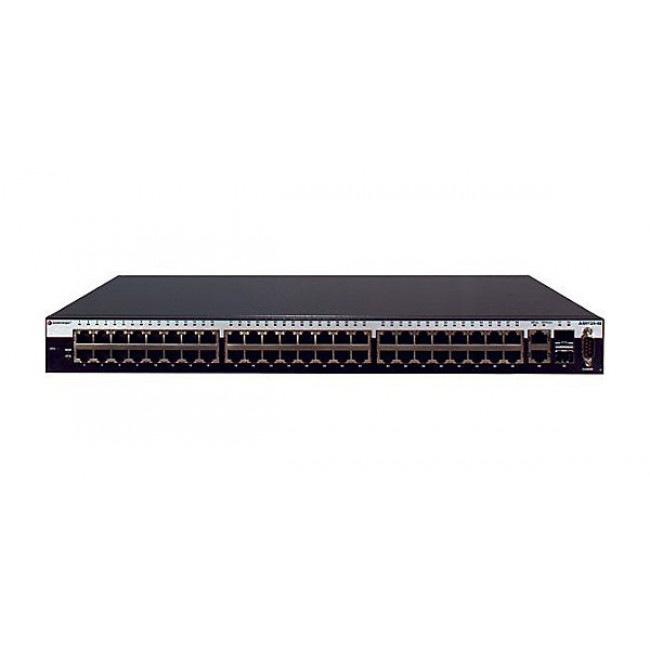

Extreme A-series A4H124-48

Throughput Capacity wire-speed Mpps (switch / stack)

13.1 Mpps / 104.8 Mpps

Switching Capacity (switch / stack)

17.6 Gbps (13.1 Mpps) / 140.8 Gbps (104.8 Mpps)

Stacking Capacity (switch / stack)

4.0 Gbps (2.98 Mpps)/32.0 Gbps (23.8 Mpps) No dedicated stacking on A4; up to two Gigabit uplinks can be used for stacking or uplinks

Aggregate Throughput Capacity (switch / stack)

17.6 Gbps (13.1 Mpps) / 140.8 Gbps (104.8 Mpps)

802.3af Interoperable

N/A

System Power

N/A

Dimensions (H x W x D)

H: 4.4 cm (1.73”)

W: 44.1 cm (17.36”)

D: 36.85 cm (14.51”)

Net Weight

4.59 kg (10.12 lb)

MTBF

323,946 hours

Physical Ports

• (48) 10/100 auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports
• (2) SFP ports
• (2) Gigabit stacking/uplink Rj45 ports
• (1) DB9 console port
• (1) RPS port

Normal Input Voltage

100 – 240 VAC

Input Frequency

50 – 60 Hz

Input Current

1.0 A Max

Power Consumption

47 watts

Throughput Capacity wire-speed Mpps (switch / stack)

47.0 dB

Safety

UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1

EMC

FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3

Environmental

2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive)
