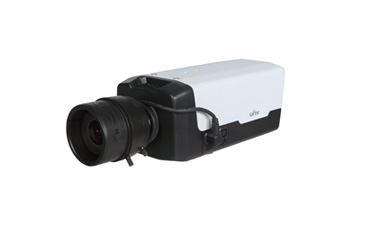

Uniview IPC542E-DLC

Camera

Sensor

1/2.8", 2 megapixel, progressive scan CMOS

Shutter

Auto/Manual, 1/6~1/8000 s

Min. Illumination

Colour: 0.02 Lux (F1.2, AGC ON)

0 Lux with IR

Lens Mount

C/CS

DC-Iris

DC 4V (4 Pins)

Motor Zoom/focus

DC 5V (4 Pins)

S/N

>52dB

WDR

120 dB

Video

Max. Resolution

1920 × 1080

Video Compression

H.264, MJPEG

Frame Rate

1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps

Video Streaming

Triple

9:16 Corridor Mode

Supported

ROI

Supported

Defog

Digital

HLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

Audio

Audio Compression

G.711

Two-way audio

Supported

Storage

Edge Storage

Micro SD, up to 128 GB

Network

Protocols

L2TP, IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x

Compatible Integration

ONVIF, API

Interface

Audio I/O

3.5 mm audio interface

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

2 / 1

Serial Port

1 RS485 (support Pelco-D/P)

Network

10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power

24 V AC, 12 V DC, or PoE (IEEE802.3 af)

Power consumption: 4.8 W (6.8W with ICR on)

Dimensions (L × W × H)

151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)

Weight

0.48 kg (1.1 lb)

Working Environment

–20°C ~ +60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
