| Physical Configuration | |
| Dimension (HxWxD) cm | 4.4 x 44 x 31.5 cm |
| Expansion Slots | 1 |
| Fixed Ports | 24 x 10/100/1000Base-T + 2 x 10G SFP+ + 10G dual port expansion slot |
| Flash Memory | 128MB |
| Weight (kg) | 3.7 kg |
| Performance | |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table Size | 16K |
| Switching Capacity | 128 Gbps |
| L2 Features | |
| Autonegotiation | Yes |
| Flow Control | 802.3x (Full-duplex) | Back-Pressure (Half-duplex) |
| Yes | |
| IGMP Snooping | V1 | V2 | V3 |
| Jumbo Frame | Yes |
| Link Aggregation | Static Trunk |
| Multicast (IGMP) Snooping | Querier Support | Immediate Leave | IGMP Filtering | IGMP Throtting |
| Q-in-Q | Yes |
| Spanning Tree | IEEE 802.1D (STP) | IEEE 802.1w (RSTP) | IEEE 802.1s (MSTP) | Spanning Tree Fast Forward | Root Guard | Auto Edge | Loopback Detection |
| Storm Control | Broadcast | Multicast | Unknown Unicast |
| VLAN | IEEE 802.1Q VLAN | Private VLAN | GVRP | IEEE 802.1v | MAC-Based VLAN | IP Subnet VLAN | Port-Based VLAN | Voice VLAN |
| L3 Features | |
| Proxy ARP | Yes |
| Unicast Routing | RIP v1/v2 | OSPF | BGP4 |
| VRRP | Yes |
| QoS Features | |
| CoS | IEEE 802.1p | DSCP |
| H/W Queues | 8 hardware queues per port |
| Rate Limiting | Ingress | Egress |
| Security Features | |
| ARP Inspection | Yes |
| DHCP Snooping | Yes |
| HTTP and SSL ( Secured Web) | Yes |
| IEEE 802.1x | Port-based | MAC-based |
| IP Source Guard | Yes |
| Management Access filtering | SNMP | WEB | Telnet |
| SSH v1.5/ v2.0 (Secured Telnet Session) | Yes |
| TACACS+ | Authentication | Accounting | Authorization |
| Management Features | |
| DHCP | Client | Server | Dynamics Provision |
| DNS | Client | Proxy |
| Dual F/W Images | Yes |
| Firmware Upgrade | TFTP (RFC783) |
| LLDP | Yes |
| RMON | RMON I (1,2,3 & 9 groups) |
| sFlow | Yes |
| Software Download / Upgrade | TFTP (RFC783) |
| IPv6 Features | |
| ICMPv6 | Yes |
| ICMPv6 Redirect | Yes |
| IPv4/IPv6 Dual Protocol Stack | Yes |
| IPv6 Address Types | Unicast | Multiicast |
| IPv6 Management | IPv6 SNTP Support | SNMP over IPv6 | IPv6 Telnet Support | Remote IPv6 Ping | IPv6 Syslog Support | IPv6 DNS Resolver | IPv6 TFTP support | HTTP over IPv6 | IPv6 sFlow |
| IPv6 Multicast Routing | MLD v1/v2 Snooping |
| IPv6 Security | SSH over IPv6 |
| Pv6 Neighbor Discovery | Static Cache Entry | Unreachable Neighbor Detection |

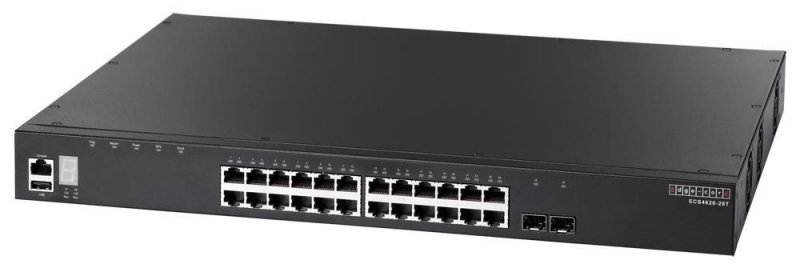

Edge-Core ECS4620-28T
