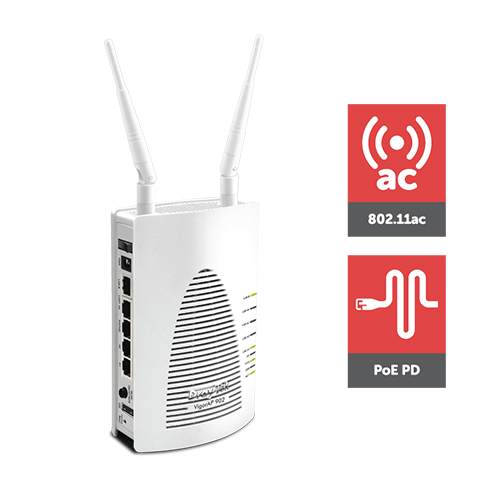

DrayTek VigorAP 902

код: 04126

(

:1)

голосувати

Hardware Interface	5 x 10/100/1000M Base-T LAN Switch, RJ-45 (LAN A3 for PoE Indoor Use) 1 x USB 2.0 Host 2 x Detached Antennas 1 x Factory Reset Button 1 x Wireless ON / OFF / WPS Button 1 x Power ON / OFF Button
Wi-Fi Frequency	11b/g/n : 2.412 ~ 2.462GHz (USA) 2.412 ~ 2.472GHz (Europe ETSI) 11a/an/ac : 5.150 – 5.250 & 5.725 – 5.825 GHz (USA) 5.150 – 5.250 & 5.470 – 5.725GHz (Europe ETSI)
Wireless Transmit Power	2.4GHz Max : 18 dBm 5 GHz Max : 19 dBm
Temperature	Operating : 0°C ~ 40°C Storage : -20°C ~ 60°C
Humidity	10% ~ 90% ( non-condensing )
Power Adapter	DC12V@1A
Max. Power	12 watt
Dimension	W157 * H30 D127 ( mm )
Voltage of 802.3af PoE	44v~57v

Band 2.4GHz
- IEEE802.11b/g/n compliant
  - 11b only
  - 11g only
  - 11n only
  - Mixed (11b+11g)
  - Mixed (11g+11n)
  - Mixed (11b+11g+11n)
- Operation Mode:
  - AP
  - Station Infrastructure
  - AP Bridge Point to Point
  - AP Bridge Point to Multi-point
  - AP Bridge WDS (Wireless Distribution System)
  - Universal Repeater
Band 5GHz
- IEEE802.11a/n and IEEE802.11ac draft compliant
  - 11a only
  - 11n only
  - Mixed (11a+11n)
  - Mixed (11a+11n+11ac)
- Operation Mode:
  - AP
  - Universal Repeater*
Support up to 64 Wireless Clients per band
- Limited Wireless Clients
Multiple SSID
- Support 4 SSIDs per band
Hidden SSID
Wireless Isolation
VLAN Grouping and SSID mapping for LAN A & B
MAC Clone
Security Mode
- Open (Disable)
- 64/128-bit WEP
- WPA/PSK
- WPA2/PSK
- Mixed mode(WPA+WPA2)/PSK
- 802.1X
- Encryption: AES/TKIP
802.1x authentication
- Internal RADIUS Server support PEAP
- RADIUS Proxy support TLS & PEAP
Internal Radius Server
MAC Address Control
- Support total 256 entries
WPS mode
- PBC
- PIN
AP Discovery
WMM
Station List
Bandwidth Management
Airtime Fairness
Roaming
- PMK-Caching
- Pre-Authentication
Station Control
DrayTek WLAN Security default settings (Refer to Default Configuration Section):
PSK write method follow MAC address mechanism
Telnet command to:
- Read PSK from flash (*similar with MAC Address read method)
- Disable/Enable WLAN security, for test mode

DrayTek VigorAP 902
