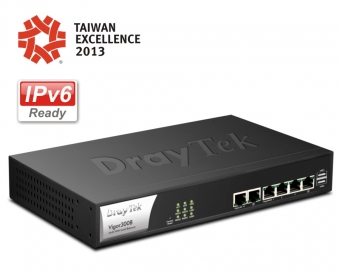

DrayTek Vigor300B

Hardware Interface	LAN	2 x 10/100/1000M Base-TX LAN switch, RJ-45
	WAN	4 x 10/100/1000M Base-TX WAN switch, RJ-45
	Console	1 x console, RJ-45
	Reset	1 x factory reset button
	USB	2 x USB host 2.0
Declaration of Conformity
Temperature	Operating : 0°C ~ 45°C
	Storage : -25°C ~ 70°C
Humidity	10% ~ 90% ( non-condensing )
Max. Power	10 Watt
Dimension	L 273 * W 166 * H 44 ( mm )
Power	DC 15V / 1.34A

1. IP Protocol

• Ipv4
• Ipv6

2.WAN Protocol

• DHCP Client
• Static IP
• PPPoE

3. Multi-WAN

• Load Balance
• WAN Connection Failover

4. NAT Session

• 100,000

5. NAT

• Port Redirection
• DMZ Host
• Open Ports
• Address Mapping

6. Network Feature

• Hardware NAT
• DHCP Client/Relay/Server
• DHCP Option: 1,3,6,51,53,54,58, 59,60,61,66,125
• IGMP v1/v2c
• Dynamic DNS
• NTP Client
• DNS Cache/Proxy
• UPnP up to 500 Sessions
• Wake on LAN
• Multi Subnet LAN (base on VLAN) up to 4 Subnets
• Routing Protocol:
  • Static Routing
  • RIP v1/v2

• Support BGP routing protocol

7. Firewall

• Object-based Firewall
  • IP Object
  • Service Type Object
  • Keyword Object
  • File Extension Object
  • IM/P2P Object (APP Control)
  • Protocol Object
  • Web Content Object
  • Time Schedule Object

• IP Filter, Application Filter, MAC Address Filter
• SPI (Stateful Packet Inspection)
• DoS/DDoS Defense
• Port Block
• Bind IP to MAC Address
• E-mail Alert and Log via Syslog

8. CSM (Content Security Management)

• Object-based:
• URL Control Filter
• Web Content Filter
• APP Enforcement (IM/P2P Blocking)

9. Bandwidth Management

• QoS :
  • Guarantee Bandwidth for VoIP
  • Class-based Bandwidth Guarantee by User-defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)

• Bandwidth/Session Limitation
• Smart Bandwidth Limit* (Auto/Manaul)

• APP QoS*

• 802.1p and Layer-3 (TOS/DSCP)
• QoS Mapping

10. Network Management

• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management MIB-II
• Management Session Time Out
• Multi-level Management (Admin/User Mode)
• Time Schedule Control
• User Management
• External Device
• Web Bulletin Board*
• TR-069

11. USB

• 3.5G WAN*
• Printer Sharing
• File System :
  • Support FAT32/FAT16 File System
  • Support FTP Function for File Sharing

12. Switch

• IGMP Proxy/Snooping*
• Tag-based (802.1q) VLAN
• Up to 4 VLANs

13. Hardware Interface

• 4 x 100/1000Base-TX WAN, RJ-45 (WAN4 is Configurable as Physical DMZ Port)
• 2 x 100/1000Base-TX LAN, RJ-45 (LAN2 is Configurable as Monitor Port /Physical DMZ Port)#
• 2 x USB Host 2.0
• 1 x Factory Reset Button
