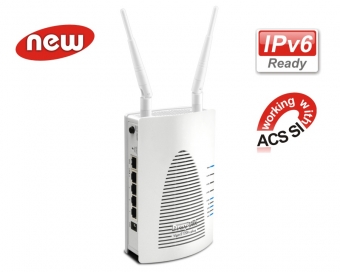

DrayTek Vigor2120n plus

• Ethernet WANUSB WAN
  • IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
  • IPv6- Tunnel Mode: TSPC, AICCU, 6in4, 6rd
    Dual Stack: PPP, DHCPv6 Client, Static IPv6
• USB WAN
• WAN Connection Failover

• 2 VPN Tunnels (including SSL VPN)
• Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption : MPPE and Hardware-based AES/DES/3DES
• Authentication : MD5, SHA-1
• IKE Authentication : Pre-shared key and Digital Signature (X.509)
• LAN-to-LAN, Host-to-LAN
• IPsec NAT-traversal (NAT-T)
• Dead Peer Detection (DPD)
• DHCP over IPSec
• VPN Pass-through
• VPN Wizard

• Multi-NAT, DMZ Host, Port-Redirection and Open Port
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS/DDoS Prevention
• IP Address Anti-spoofing
• E-mail Alert and Logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control

• IM/P2P Application
• URL Content Filter :
  • URL Keyword Blocking (White List and Black List)
  • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
  • Excepting Subnets
• GlobalView Web Content Filter ( Powered by  )

• QoS :
  • Class-based Bandwidth Guarantee by User-defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
• Smart Bandwidth Limitation (Triggered by Traffic/Session)
• APP QoS

• Packet Forwarding Acceleration
• DHCP Client/Relay/Server
• IGMP Proxy V2/V3
• IGMP Snooping
• Dynamic DNS
• NTP Client
• RADIUS Client
• DNS Cache/Proxy and LAN DNS
• UPnP
• Bonjour service
• Multi-Subnet LAN
• Routing Protocol:
  • Static Routing
  • RIPv2

• Printer Sharing
• File Sharing:
  • Support FAT32 File System
  • Support FTP Function for File Sharing
  • Support Samba for File Sharing
• Support 3.5G / 4G LTE as USB WAN (for back-up only)

note: LTE USB mobile Support List Please Contact support@draytek.com

• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet / SSH)
• Administration Access Control
• Configuration Backup / Restroe
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP V2/V3
• Management Session Time Out
• External Device (Client Mode)
• TR-069 (Compliant with VigorACS SI)

• 802.11n WLAN with Concurrent 2.4/5 GHz Frequency
• IEEE802.11a/b/g/n Compliant
• Wireless Client List
• Wireless Isolation
• Wireless Security
  • WEP 64/128 bit/WPA/WPA2
• Hidden SSID
• Multiple SSIDs
• Wireless MAC Address Filter
• Access Point Discovery
• WDS (Wireless Distribution System)
• SSID VLAN Grouping with LAN Port
• Wireless Rate-control
• WMM
• WPS

Hardware Interface

1 x 10/100/1000M Base-TX WAN Ports, RJ-45

4 Port 10/100/1000M Base-TX LAN Switch, RJ-45

1 x USB Host 2.0 (for Printer/3.5G and 4G USB Modem/USB Disk)

2*Detached Antennas

1 x Factory Reset Button

1 x Wireless ON / OFF / WPS Button

1 x Power ON / OFF Button

Temperature

Operating : 0°C ~ 45°C

Storage : -25°C ~ 70°C

Humidity

10% ~ 90% ( non-condensing )

Max. Power

12 Watt

Dimension

L216.4 * W147.8 * H53.5 ( mm )

Power

DC 12V
