Уличная IP камера f=2.8mm или 3.6мм, 1/3.1″ CMOS, 1920×1080 (2MP),углы обзора IB9369(2.8mm): 118° (Horizontal) 65° (Vertical) 140° (Diagonal), IB9369(3.6mm): 90° (Horizontal) 49° (Vertical) 106° (Diagonal), съемный ИК фильтр, ИК подсветка — 30м, 0.065 Lux (Color), 0.005 Lux (B/W), H.265, H.264, MJPEG, 30 fps @ 1920×1080, 3 независимых потока, MicroSD/SDHC/SDXC, 48-кратный цифровой зум, WDR Enhanced, BLC, HLC, 3DNR, поворот видео, Smart Stream III, IEEE 802.3af PoE Class 0 — max 6.49W, 12V DC, IP66, -30°C ~ 50°C.
Характеристики:
Технические характеристики:
| Model |
IB9369 (2.8mm) IB9369 (3.6mm) |
|
| System | CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB | |
| RAM | 256 MB | |
| Camera Features | Image Sensor | 1/3.1″ Progressive CMOS |
| Maximum Resolution | 1920×1080 (2MP) | |
| Lens Type | Fixed-focal | |
| Focal Length |
IB9369(2.8mm): f = 2.8 mm IB9369(3.6mm): f = 3.6 mm |
|
| Aperture |
B9369(2.8mm): F2.0 IB9369(3.6mm): F2.2 |
|
| Auto-iris | Fixed-iris | |
| Field of View |
IB9369(2.8mm): 118° (Horizontal) 65° (Vertical) 140° (Diagonal) IB9369(3.6mm): 90° (Horizontal) 49° (Vertical) 106° (Diagonal) |
|
| Shutter Time | 1/5 sec. to 1/32,000 sec. | |
| WDR Technology | WDR Enhanced | |
| Day/Night | Yes | |
| Removable IR-cut Filter | Yes | |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1 | |
| Minimum Illumination |
IB9369(2.8mm): 0.08 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on IB9369(3.6mm): 0.1 lux @ F2.2 (Color) <0.005 lux @ F2.2 (B/W) 0 lux with IR illumination on |
|
| Tilt Range | 90° | |
| Rotation Range | 180° | |
| Pan/Tilt/Zoom Functionalities | ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in) | |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) | |
| Video | Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920×1080 | |
| Maximum Streams | 2 video streams (Up to 7 configurable profiles) | |
| S/N Ratio | 59 dB | |
| Dynamic Range | WDR Support | |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III | |
| Image Settings |
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator |
|
| Network | Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP | |
| Interface |
10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
|
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org | |
|
Solution Integration
|
Smart Motion Detection | Five-window video motion detection, people detection, time filter |
| VADP Package | Smart Motion Detection | |
| Alarm and Event | Event Trigger | Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot |
| Event Action |
Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, SFTP, NAS server, SD card |
|
| General | Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
| LED Indicator | System power and status indicator | |
| Power Input |
IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported) |
|
| Power Consumption |
PoE: Max. 6.49W/4W (IR on/off) DC 12V: Max. 5.1W/3.4W (IR on/off) |
|
| Dimensions | Ø 91.1 x 181.5 mm | |
| Weight | 671 g | |
| Casing | IP66, IK10(Housing) | |
| Certifications |
EMC: CE (EN55032 Class A,EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529) |
|
| Operating Temperature |
Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
|
| Humidity | 95% RH (non-condensing) | |
| System Requirements | Operating System |
Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser |
Chrome 58.0 or above Internet Explorer 10/11 |
|
| Other Players | VLC: 1.1.11 or above | |
| Included Accessories | Others | Quick installation guide, alignment sticker, screw pack, cable gland |

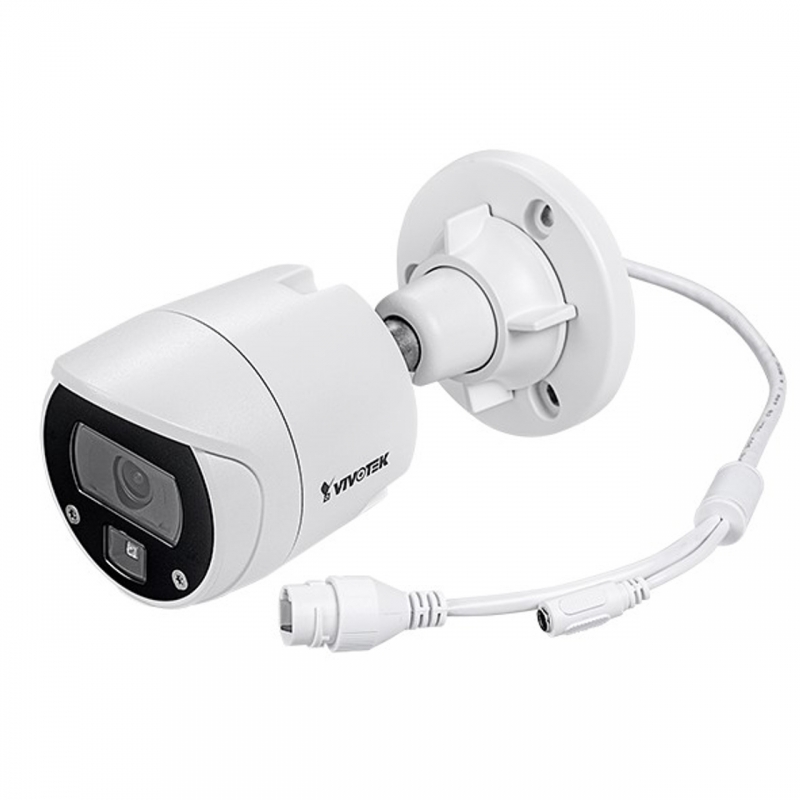

Vivotek IB9369
