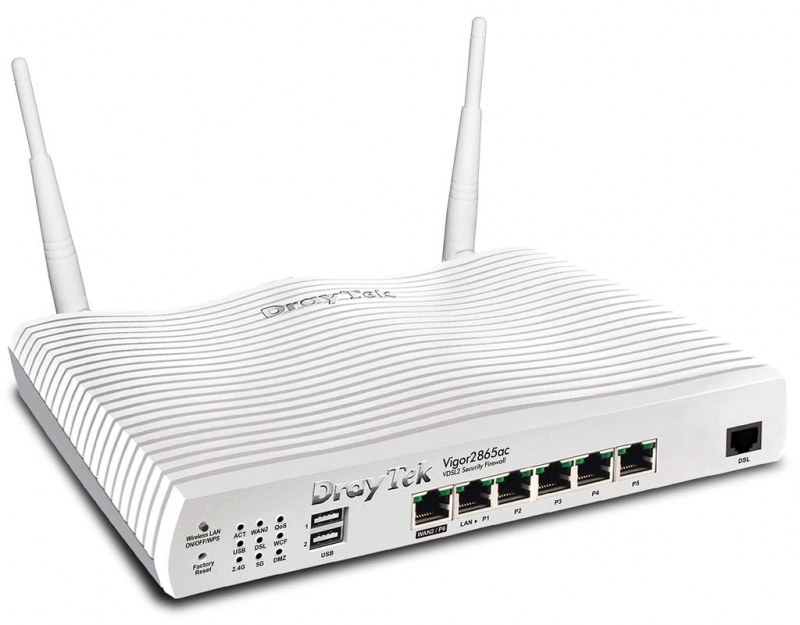

The DrayTek V2865AC-K is an AC1300 Wireless VDSL Router that provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.
DrayTek V2865AC-K Key Features
-
VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
-
Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
-
Up to 950Mbps Firewall Throughput for Ethernet WAN
-
5+1 Gigabit RJ-45 LAN Ports
-
Up to 800Mbps VPN Throughput with IPsec acceleration
-
32 LAN-to-LAN & Remote Teleworker VPN Tunnels
-
16 DrayTek SSL VPN or OpenVPN Tunnels
-
4G/LTE with dual-SIMs for second backup telco (‘L’ models)
-
AC1300 - 11ac ‘Wave 2’ Dual Band Wireless with Mesh (‘ac’ models)
-
8 LAN Subnets with VLANs (Port-based / 802.1q)
-
SPI Firewall and Content Filtering
-
Optional VigorCare Available
-
Compatible with VigorACS central management platform
DrayTek V2865AC-K - Technical Specifications
Physical Interfaces:
-
WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11
-
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
-
LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
-
2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer
-
or 1x USB 2.0 Port (‘L’ models)
-
2x Removable Wireless antennas (wireless models)
-
2x Removable 4G/LTE Wireless antennas (‘L’ models)
-
Wireless On / Off / WPS button
-
Recessed Factory Reset button
Performance:
-
Router Performance:
- 100 Mb/s Max Sync Rate with VDSL2
-300 Mb/s Max Sync Rate with VDSL2 35b
-950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
-1.3Gb/s Total Mult-WAN NAT Throughput
-800 Mb/s NAT Throughput per WAN without Hardware Acceleration
-60,000 NAT Sessions
-
VPN Performance:
- 300 Mb/s IPsec (AES256) VPN Performance
-800 Mb/s Hardware Accelerated IPsec VPN Performance
-130 Mb/s SSL VPN Performance
-Max. 32 Concurrent VPN Tunnels
-Max. 16 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces:
-
WAN1: VDSL2 / VDSL2 35b / ADSL2+
-
WAN2: Gigabit Ethernet
-
WAN3: 2.4GHz Wireless WAN (‘ac’ models)
-
WAN4: 5GHz Wireless WAN (‘ac’ models)
-
WAN5: 4G/LTE USB Modem (not included)
-
or Integrated 4G/LTE Category 6 Modem (‘L’ models only)
-
WAN6: 4G/LTE USB Modem (not included)
Internet Connection:
-
Load Balancing: IP-based, Session-based
-
Hardware Acceleration
-
802.1p/q Multi-VLAN Tagging
-
Multi-VLAN/PVC
-
2.4GHz & 5GHz Simultaneous Wireless WAN (‘ac’ models only)
-
WAN Active on Demand: Link Failure, Traffi c Threshold
-
Connection Detection: PPP, ARP Detect, Ping Detect
-
WAN Data Budget
-
Dynamic DNS
-
DrayDDNS – with automated LetsEncrypt Certifi cates – New!
-
Full Feature-set Hardware Acceleration:
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
-
IPv4 Connection Types: PPPoE, PPPoA, MPoA, DHCP, Static IP, PPTP/ L2TP
-
IPv6 Connection Types:
- DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU
VDSL & ADSL Features
-
BT Infinity Option 1 & Option 2 Compatible
-
Compliant with Openreach SIN 498
-
Auto Detection of VDSL and ADSL line modes
-
Support for G.INP & Vectoring
-
VDSL Standards:
- ITU-T G.993.1 VDSL
- ITU-T G.993.2, G.997.1 VDSL2
- Band Plan: G.998, G.997
- Annex A, Annex B, Annex C
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
- OLR, UPBO, DPBO Supported
- US0 Supported
- Loop Diagnostic Mode
- DSL Forum WT-114
-
ADSL Standards:
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt (ADSL)
- ITU-T G.992.2 G.lite
- ITU-T G.992.3 ADSL2
- ITU-T G.992.5 ADSL2+
-
ATM Protocols:
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- Support for RFC4638 for MTU up to 1500
Wireless Features (‘ac’ models)
-
AC1300 - 11ac ‘Wave 2’ Dual Band Wireless (‘ac’ models):
- 802.11ac 2x2 wireless access point
- 2.4GHz: 2x2 MIMO with 2 dBi Antenna Gain
- 5GHz: 2x2 MU-MIMO with 4 dBI Antenna Gain
- Backwards Compatible with 802.11a/b/g/n wireless
- Dual-band (2.4/5Ghz) simultaneous wireless
- Up to 866Mbps PHY rate at 80MHz with 5GHz
- Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
- Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
- MU-MIMO
- Tx Beamforming
-
Mesh Root support with DrayTek VigorAP Mesh Nodes – New! (requires f/w 4.3.0)
-
Up to 4 SSIDs per radio band
-
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
-
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
-
Bandwidth Management (Per Station / Per SSID)
-
WMM (Wireless MultiMedia)
-
WPS - WiFi Protected Setup
-
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
-
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security
-
WPA2
-
WPA3 – New! (requires f/w 4.3.0)
-
Pre-Shared Key authentication
-
Enterprise 802.1x authentication
-
WEP/WPA for Legacy Clients
-
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
-
IP-based or User-based Firewall Policy
-
User-based Time Quota
-
DoS Attack Defence
-
Spoofing Defence
-
Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
-
NAT Port Redirection
-
Open Ports
-
Port Triggering
-
DMZ Host
-
UPnP
-
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
-
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
-
802.1q Tag-based, Port-based VLAN
-
Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
-
Up to 16 VLANs
-
DMZ Port
-
DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 1022 addresses for LANs 1-3
- DHCP Pool Count up to 253 addresses for LANs 4-8
-
LAN IP Alias
-
Wired 802.1x Port Authentication
-
Port Mirroring
-
Local DNS Server
-
Conditional DNS Forwarding
-
Hotspot Web Portal
-
Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
-
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
-
High Availability: Active-Standby, Hot-Standby
-
DNS Security (DNSSEC)
-
Local RADIUS server
-
SMB File Sharing (Requires external storage)
-
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
-
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN Features
-
Up to 32 active VPN tunnels - including up to 16 SSL VPN or OpenVPN Tunnels
-
Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New!
-
LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
-
Teleworker-to-LAN – Dial-In VPN Server
-
User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP
-
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
-
Encryption: MPPE, DES, 3DES, AES (128/192/256)
-
Authentication: SHA-256, SHA-1
-
VPN Trunk (Redundancy): Load Balancing, Failover
-
Dead Peer Detection (DPD)
-
IPsec NAT-Traversal (NAT-T)
-
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
-
DHCP over IPsec
-
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/ CG-NAT - New!
-
VPN Protocols:
- IPsec IKEv1, IKEv2, IKEv2 EAP
- IPsec-XAuth
- DrayTek SSL VPN
- OpenVPN
- GRE over IPsec
- PPTP
- L2TP, L2TP over IPsec
Bandwidth Management
-
IP-based Bandwidth Limit
-
IP-based Session Limit
-
User-based Data Quota
-
QoS (Quality of Service):
- Classify via TOS, DSCP, 802.1p, IP Address, Service Type
- 4 Priority Queues
- App QoS
- VoIP Prioritization
Management
-
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
-
Config File Export & Import
-
Import Config from Vigor 2862
-
Auto Backup Config to USB Storage – New!
-
Firmware Upgrade via TFTP, HTTP, TR-069
-
2-Level Administration Privilege
-
Access Control Features: Access List, Brute Force Protection
-
Syslog
-
SMS, E-mail Notification Alert
-
SNMP: v1, v2c, v3
-
Managed by VigorACS:
- Router Central Management Features:
- AP Management: Up to 20 VigorAP access points
- Switch Management: Up to 10 VigorSwitch network switches
- VPN Management: Up to 8 Vigor routers
- DrayTek Mesh: Up to 7 VigorAP access points – New! (requires f/w 4.3.0)
Operating Requirements
-
Rack Mountable (Optional Vigor RM1 mounting bracket required)
-
Wall or Shelf Mountable with included fittings
-
Temperature Operating: 0 °C ~ 45 °C
-
Storage: -25 °C ~ 70 °C
-
Humidity 10% ~ 90% (non-condensing)
-
Power Consumption: 24 watts maximum (‘ac’ model)
-
Weight: 620g (‘ac’ model)
-
Dimensions: 241mm Width x 165mm Depth x 44mm Height
-
Operating Power: DC 12V (via external PSU, supplied)
-
Warranty : Two (2) Years RTB
-
Power Requirements : 220-240VAC
Box Contents
-
Vigor 2865 series router
-
Quick Start Guide
-
Screws & wall plugs for wall mounting
-
2m Cat-5e RJ-45 Network Cable
-
2x Detachable Wireless LAN Antennas (‘ac’ models)
-
2x Detachable LTE Antennas (‘L’ models)
-
2x 1m LTE Extension Base (‘L’ models)
-
DC 12V Power Supply with UK Plug
