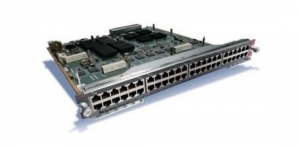

Cisco C6800-48P-TX-XL

Product Code

C6800-48P-TX-XL

Product Type

6800 Series 1 Gigabit Modules

Transceiver Type

RJ-45

Ports/Interface/
Connectors

48-port, RJ-45, 100m, Category 5 cable

Port Density/
Chassis Model

·240 ports/
C6807-XL
·528 ports/
6513E
·384 ports/
6509E

Maximum Frame Size

Up to 9216 bytes/frame

Fabric channel speed

20 Gb/sec

Pluggable transceivers

Not supported

TDR support

Supported

Buffer Size per Port

·Rx-166KB
·Tx-1.17MB

Onboard Memory

1GB Default

Power Requirements

405 and 410 Watts respectively

Backplane connection

Connects to the switch fabric using dual full-duplex 20-Gbps switch fabric channels (40 Gbps total).

Chassis/slot support

Can occupy slots 1-2 and 5-7 in C6807-XL chassis. Can occupy any slots in
Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a
Cisco Catalyst 6513-E.

Supervisor engine

Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL.

Distributed forwarding and performance

 Comes equipped with DFC4 or DFC4XL daughter cards, delivering optimal performance up to a sustained 60 Mpps for L2, IPv4 and MPLS forwarding and 30 Mpps for IPv6 forwarding.
