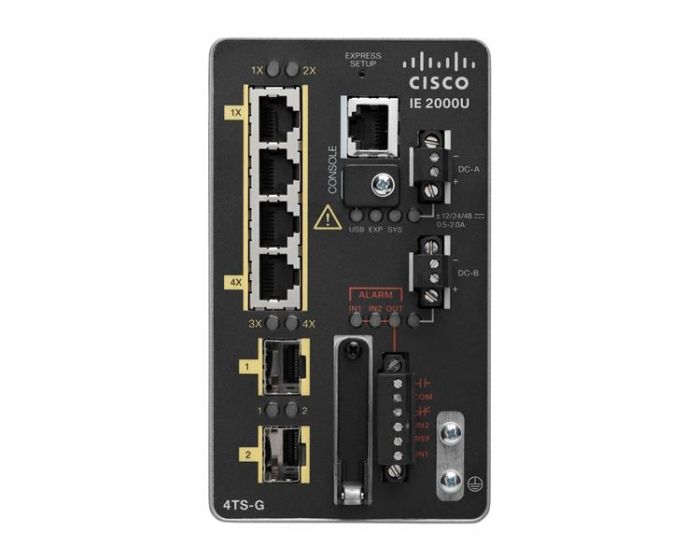

Cisco IE-2000-4S-TS-G-L

Product Number

IE-2000-4S-TS-G-L

Всего портов

6

Консольный порт RJ45

-

Комбо порты

-

SFP порты

4 FE, 2 GE

Образ ПО

LAN Lite

Возможный апгрейд

LAN Lite to LAN Base Cisco IOS Software Upgrade

Поддержка IEEE 1588

-

Поддержка NAT

-

Поддержка PoE(+)

-

Аппаратные характеристики

256 MB DRAM with ECC memory

IEEE 1588v2 FPGA

64 MB on-board flash memory

1GB removable SD flash memory card (optional)

Mini-USB connector

Сигнализация

Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay

Потребляемая мощность

4-port downlink models: 9.5-15 W

Разъемы и кабели

100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors

10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Габариты (В x Ш x Д), включая DIN Rail

IE-2000 6 ports (SFP downlinks) chassis: 5.1“H x 3.15”W x 4.51”D in (130mm H x 80mm W x 115mm D)

Вес

IE-2000 6 ports (SFP): 2.69 lbs (1.22 kg)

Сертификаты безопасности

UL/CSA 60950-9

EN 60950-9

CB to IEC 60950-1 (with country deviations)

NOM to NOM-019-SCF1 (through partners and distributors)

CE Marking

Рабочая температура

-40C to +70C (vented enclosure - 40 LFM Air Flow)

-40C to +60C (sealed enclosure – 0 LFM Air Flow)

-34C to +75C (fan or blower-equipped enclosure – 200 LFM Air Flow)

-40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours)

Operational altitude: Up to 15,000 ft

Температура хранения

-40 C to +85 C (storage temperature)

IEC 60068-2-22

Storage altitude: Up to 15,000 ft

Среднее время наработки на отказ (MTBF)

Mean time between failure: 374,052 hours (42.7 years)
