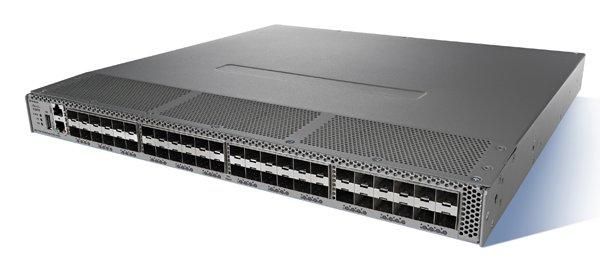

Cisco DS-C9148S-D48P8K9

Device Type

Switch - 48 ports - managed

Enclosure Type

Rack-mountable 1U

Subtype

Fibre Channel

Ports

48 x 8Gb Fibre Channel

Fibre Channel

FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6

Remote Management Protocol

RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI

Encryption Algorithm

AES

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory

Features

Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), back to front airflow, Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client

Interfaces

1 x 1000Base-T - RJ-45 - management ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A ¦ 48 x 8Gb Fibre Channel - LC multi-mode x 2

Power Device

Internal power supply - hot-plug

Voltage Required

AC 120/230 V (50/60 Hz)

Width

17.2 in

Depth

16.3 in

Height

1.7 in

Weight

19.84 lbs
