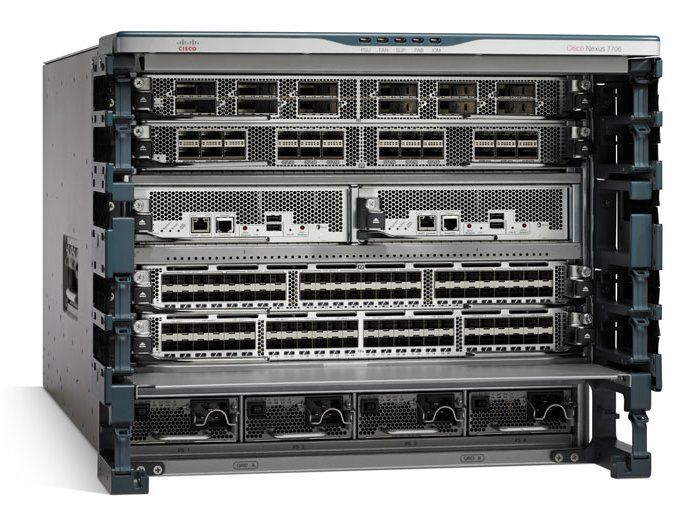

Cisco Nexus N77-C7706

Product Name

Nexus 7700 6 Slot Chassis No P/S Fans Inclu

Manufacturer Part Number

N77-C7706

Product Line

Nexus

Product Series

7700

Product Model

7700

Product Type

Switch Chassis

Interfaces/Ports

Modular

No

I/O Expansions

Number of Total Expansion Slots

6

Network & Communication

Layer Supported

2

Power Description

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Management & Protocols

Manageable

Yes

Physical Characteristics

Compatible Rack Unit

9U

Form Factor

Rack-mountable

Height

15.6"

Width

17.3"

Depth

32"

Warranty

Limited Warranty

1 Year

Miscellaneous

Package Contents

• Nexus 7700 6 Slot Chassis
• Fan Trays

Other Information

Product Family

Nexus 7700

PoE (RJ-45) Port

No

Token Ring Port

No

LRE Port

No

Bypass

No

Certifications & Standards

EMC compliance:

• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386

Safety:

• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950

Management

• MIB
• Cisco Data Center Network Manager
• SNMP v1, 2c, 3
• Command Line Interface (CLI)

Input Voltage

110 V AC

220 V AC
