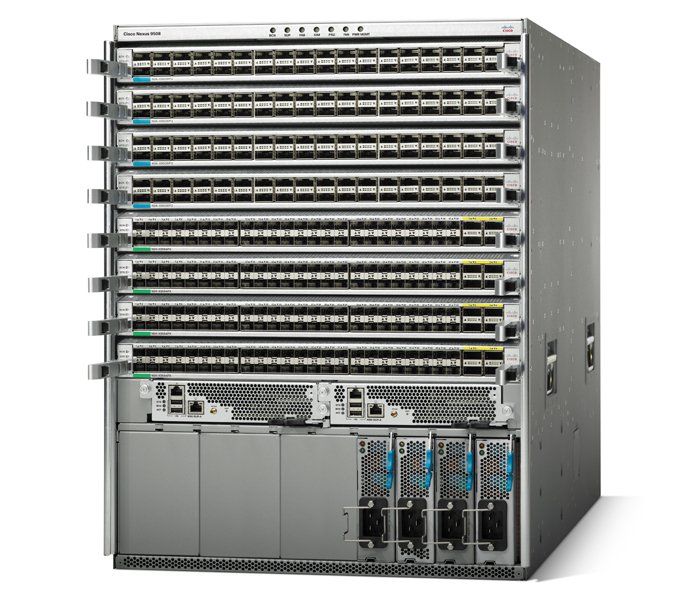

Cisco Nexus N9K-C9508

Manufacturer:

Cisco

Product ID:

N9K-C9508

Product Description:

Nexus 9508 Chassis with 8 linecard slots

Product Type:

Layer 3 Switch

Interfaces/Ports

Token Ring Port:

No

LRE Port:

No

Uplink Port:

No

Bypass:

No

Modular:

No

Management Port:

Yes

USB:

Yes

I/O Expansions

Number of Total Expansion Slots:

16

Expansion Slot Type:

Switch Fabric

Supervisor Engine

Line Card

Network & Communication

Layer Supported:

3

Management & Protocols

Manageable:

Yes

Management:

• VLAN
• RMON
• SNMP v1, 2, 3
• Syslog
• Telnet

Power Description

PoE (RJ-45) Port:

No

Input Voltage:

110 V AC

220 V AC

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable

Height:

22.7"

Width:

17.5"

Depth:

30"

Weight (Approximate):

150 lb

Miscellaneous

Certifications & Standards:

Safety:

• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition
• IEC 60950-1 Second Edition
• AS/NZS 60950-1
• GB4943

EMC: Emissions

• 47CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A

EMC: Immunity

• EN55024
• CISPR24
• EN300386
• KN 61000-4 series

Green Compliant:

Yes

Green Compliance Certificate/Authority:

RoHS-6
