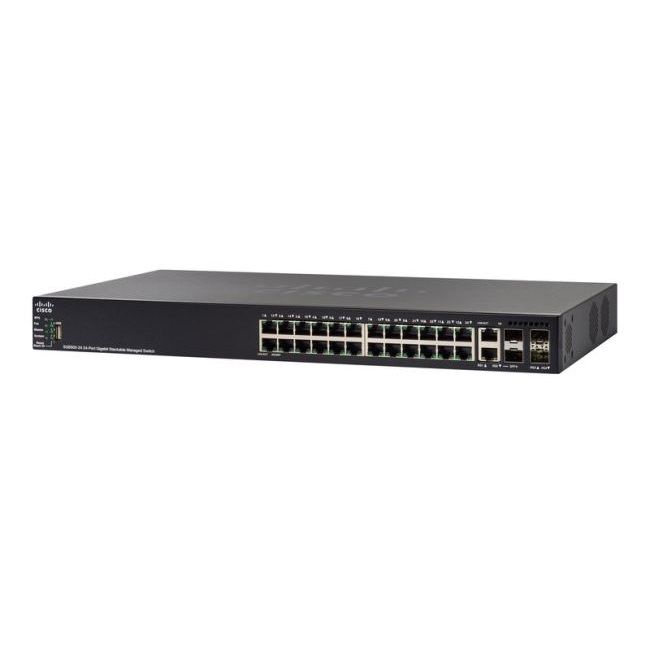

Cisco SB SG550X-24P-K9 (SG550X-24P-K9-EU)

SG550X-24P

Capacity in mpps (64-byte packets)

95.23

Switching Capacity (Gbps)

128

Power Dedicated to PoE

195W

Number of Ports That Support PoE

24 (8 support 60W PoE)

Green Power (mode)

EEE, Energy Detect, Short Reach

System Power Consumption

110V=49.4W 220V=50.1W

Power Consumption (with PoE)

110V=269.2W 220V=260.1W

Heat Dissipation (BTU/hr)

918.55

Total System Ports

24 GE + 4 10GE

Network Ports

24 GE

Uplink Ports

2 10GE copper/SFP+ combo + 2 SFP+

Flash

256 MB

CPU

800 MHz (dual-core) ARM

CPU memory

512 MB

Packet Buffer

1.5 MB

Unit Dimensions

440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)

Unit Weight

4.72 kg (10.41 lb)

Fan (Number)

3 + 1 (redundant)

Acoustic Noise

0°C - 25°C: 41.0dB 50°C: 52.9dB

MTBF at 50°C (Hours)

299,949
