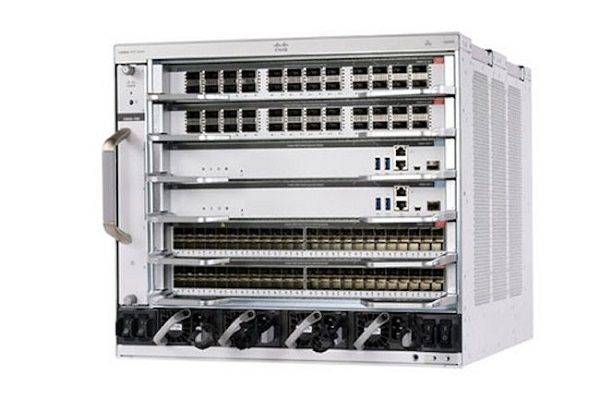

Cisco C9606R

Total number of slots

6

Line-card slots

4

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

3 and 4

Supervisor engine redundancy

Yes

Supervisor engines supported

C9600-SUP-1

Maximum bandwidth scalability per line-card slot

6.4 Tbps (Hardware ready)

2.4 Tbps (With C9600-SUP-1)

Number of power supply bays

4

Minimum number of power supplies

2

(Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V)

Power supplies supported

2000W AC, 2000W DC

Number of fan-tray bays

1

Dimensions
(H x W x D)

35.43 x 44.2 x 40.9 cm

13.95 x 17.4 x 16.1 in.

Rack Units (RU)

8

Input voltage

AC: 90V to 264V, 47 to 63 Hz AC

DC: -40V to -72V

Operating temperature

-5° to 45° C (23° to 113° F) up to 6000 feet

-5° to 40° C (23° to 104° F) up to 10,000 feet

Storage temperature

-40° to 75° C (40° to 167° F)

Relative humidity, operating and nonoperating, noncondensing

10% to 95%, noncondensing

Altitude

-60 to 3000 m (-197 to 9843 feet)

Mean Time Between Failures (MTBF) (hours)

C9606R chassis: 4,113,900

C9606 fan tray: 452,570
