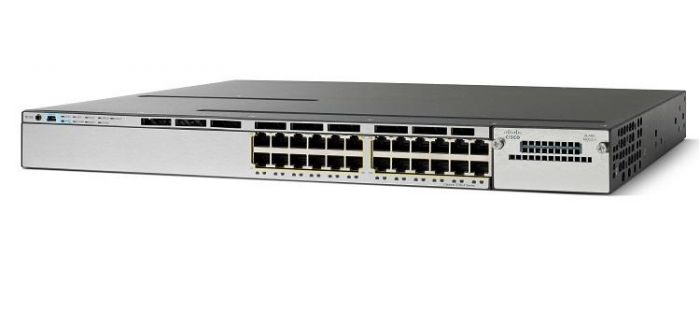

Cisco WS-C3750X-24U-E

Product Name

Catalyst 3750X 24 Port Upoe Ip Service

Product Line

Catalyst

Product Series

3750-X

Product Model

WS-C3750X-24U-E

Product Type

Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports

24

Stack Port

Yes

Port / Expansion Slot Details

24 x Gigabit Ethernet Network

Media & Performance

Media Type Supported

Twisted Pair

Ethernet Technology

Gigabit Ethernet

Network Technology

10/100/1000Base-T

Network & Communication

Layer Supported

3

Power Description

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Management & Protocols

Manageable

Yes

Physical Characteristics

Compatible Rack Unit

1U

Form Factor

Rack-mountable

Height

1.8"

Width

17.5"

Depth

19.5"

Warranty

Limited Warranty

Lifetime

Miscellaneous

Package Contents

• Catalyst WS-C3750X-24U-E Layer 3 Switch
• 1100W AC Power Supply

Environmentally Friendly

Yes

Environmental Certification

RoHS-5

Other Information

Product Family

Catalyst 3750-X

PoE (RJ-45) Port

Yes

Twisted Pair Cable Standard

Category 5e

Token Ring Port

No

LRE Port

No

USB

Yes

Management Port

Yes

Bypass

No

Number of UPOE (RJ-45) Ports

24

Certifications & Standards

IEEE Standards:

• 802.1s
• 802.1w
• 802.1x
• 802.1x-Rev
• 802.3ad
• 802.1ae
• 802.3af
• 802.3at
• 802.3x
• 802.1D
• 802.1p
• 802.1Q
• 802.3
• 802.3u
• 802.3ab
• 802.3z

Safety:

• UL60950-1
• C-UL to CAN/CSA 22.2 No.60950-1
• TUV/GS to EN 60950-1
• CB to IEC 60950-1 with all country deviations
• AS/NZS 60950-1
• CE Marking
• NOM (through partners and distributors)
• GOST (Russia Safety Mark)

EMC:

• FCC Part 15 Class A
• EN 55022B Class A (CISPR22 Class A)
• VCCI Class A
• AS/NZS 3548 Class A or AS/NZS CISPR22 Class A
• KCC
• CE Marking
• GOST
• CCC for PS FRU Redundant

MTBF

238070 Hour

Management

• Syslog
• SNMP v1, v2c, v3
• RMON I and II
• Telnet
• CLI
• QoS
• VLAN
• DHCP

Input Voltage

110 V AC

220 V AC
