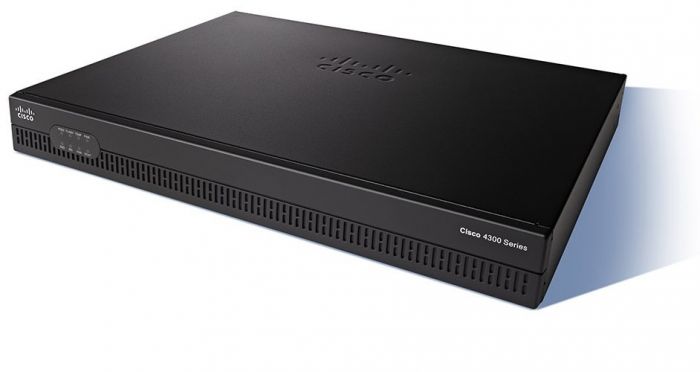

Cisco ISR4321-V/K9

Product Name

Isr 4321 Uc Bundle

Manufacturer Part Number

ISR4321-V/K9

Product Series

4000

Product Model

4321

Product Type

Router

Interfaces/Ports

Total Number of Ports

2

Powerline

No

Management Port

Yes

I/O Expansions

Number of Total Expansion Slots

4

Network & Communication

Network Technology

10/100/1000Base-T

Ethernet Technology

Gigabit Ethernet

VoIP Supported

Yes

Power Description

PoE (RJ-45) Port

No

Power Source

Power Supply

PoE

Physical Characteristics

Compatible Rack Unit

1U

Form Factor

Rack-mountable

Wall Mountable

Desktop

Height

1.8"

Width

14.6"

Depth

11.6"

Warranty

Limited Warranty

90 Day

Other Information

Product Family

4000

Token Ring Port

No

USB

Yes

Number of Network (RJ-45) Ports

2

Expansion Slot Type

SFP

Network Interface Module (NIM)

Integrated Services Card (ISC)

Memory Technology

DRAM

Certifications & Standards

Safety:

• UL 60950-1
• CAN/CSA C22.2 No. 60950-1
• EN 60950-1
• AS/NZS 60950-1
• IEC 60950-1
• GB-4943

EMC:

• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZS 3548 Class A
• VCCI V-3
• CNS 13438
• EN 300-386
• EN 61000 (Immunity)
• EN 55024, CISPR 24
• EN50082-1
• KN22, KN24

Telecom:

• TIA-968-B
• CS-03
• ANSI T1.101
• ITU-T G.823, G.824
• IEEE 802.3
• RTTE Directive

Flash Memory

4 GB

Input Voltage

120 V AC

230 V AC

Maximum Memory

8 GB

Standard Memory

4 GB
