| Управление и настройка | Web-Based User Interface (HTTP/HTTPS), CLI (Command Line Interface, Telnet/SSH), Dual Image Support, RMON Group 1, 2, 3, & 9, 802.1AB LLDP, Configuration File Export & Import by Console, Vigor Router Switch Management, SNTP, SNMP v1, v2c, v3 |
| Диагностика и востановление | Logging via Syslog, Port Mirroring, Port-based Cable Test |
| RADIUS | RADIUS /TACACS+ Client, Local |
| Access Control | Multiple admin accounts, 2-level user privilege |
| buffer size | 4.1 Mbit |
| switching capacity | 56 Gbps |
| forwarding rate | 41.7 Mpps |
| address table | 8k MAC |
| jumbo frame | Up to 9KB |
| Порты | 24x10/100/1000 RJ-45 PoE+ capable port; 4xGigabit RJ-45/SFP Combo port; 1xRJ-45 Console port |
| Питание | Max: 453.3 watts |
| Габариты | 44.1 × 27 × 4.5 |
| Вес | 4.35 кг |
| PoE стандарты | 802.3af (PoE), 802.3at (PoE+) |
| Power Budget | 340 watts |
| PoE Features | Power Limit, Scheduled On/Off |
| Количество VLAN | 256 |
| 802.1q Tag-based VLAN | Да |
| MAC-based VLAN | Да |
| Management VLAN | Да |
| Voice VLAN | Да |
| Surveillance VLAN | Да |
| Port Isolation | Да |
| GVRP | Да |
| QoS Queues | 8 |
| QoS Queue Scheduling | SPQ, WRR |
| Rate Limit | Ingress Rate Control, Egress Rate Control |
| Class of Service | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Storm Control | Да |
| DoS Defense | Да |
| 802.1x Port Access Control | Да |
| IP Source Guard | Да |
| ARP Inspection | Да |
| DHCP Snooping with Option 82 | Да |
| IP версии | IPv4, IPv6 |
| Стандарты | 802.3 10Base-T, 802.3u 100Base-T, 802.3ab 1000Base-T, 802.3x Flow Control, 802.3 Auto-Negotiation, 802.1p Class of Service, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.3ad LACP, 802.1x Port Access Control, 802.1AB LLDP, 802.3az EEE |
| Link Aggregation | 802.3ad Support, Up to 8 ports per group, Up to 8 groups |
| Spanning Tree | 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP) |
| Multicast | IGMP v2, v3 Snooping, IGMP Querier, MLD v1, v2 Snooping |

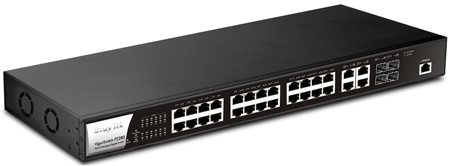

DrayTek VigorSwitch P2280
