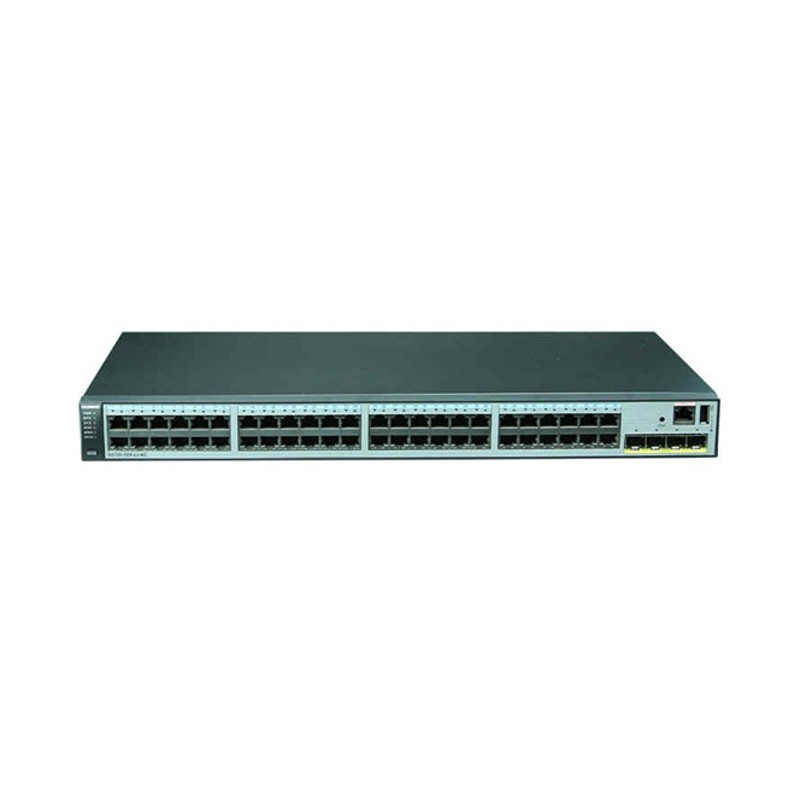

Huawei S5720-52X-LI-DC

Item

S5720-28X-PWH-LI-AC

S5720-52P-LI-AC

S5720-52P-PWR-LI-AC

S5720-52X-LI-AC(DC)

S5720-52X-PWR-LI-AC

S5720-52X-PWR-LI-ACF

Fixed Ports

16 x 10/100/1,000 Base-T, 8 x 100/1,000/2,500 Base-T,

4 x 10 Gig SFP+

48 x 10/100/1,000 Base-T,

4 x Gig SFP

48 x 10/100/1,000 Base-T,

4 x Gig SFP

48 x 10/100/1,000 Base-T,

4 x 10 Gig SFP+

48 x 10/100/1,000 Base-T,

4 x 10 Gig SFP+

48 x 10/100/1,000 Base-T,

4 x 10 Gig SFP+

MAC Address Table

16K MAC

16K MAC

16K MAC

16K MAC

16K MAC

16K MAC

Dimensions (W x D x H)

442 mm x 310 mm x 43.6 mm

442 mm  x 220 mm x 43.6 mm

442 mm x 310 mm x 43.6 mm

442 mm x 220 mm x 43.6 mm

442 mm x 310 mm x 43.6 mm

442 mm x 310 mm x 43.6 mm

Slot

N/A

N/A

N/A

N/A

N/A

N/A

Input Voltage

AC:

Rated voltage range: 100V to 240V AC; 50 Hz to 60 Hz

Maximum voltage range: 90V to 264V AC; 47 Hz to 63 Hz

N/A

N/A

N/A

DC:

Rated voltage range: -48V to 60V DC

Maximum voltage range: -36V to 72V DC

N/A

N/A

Maximum Power Consumption

without PD: 67.3W

with PD: 473W (PD 360W)

47.3W

without PD: 61.7W

with PD: 461.8W (PD 370W)

50.3W/51.6W

without PD: 63.5W

with PD: 464.3W (PD 370W)

without PD: 52.1W

with PD: 977W (PD 740W)

Typical Power Consumption

(without PD)

51.6W

29.9W

42W

31.6W/33.1W

42.2W

Operating Temperature

0m to 1,800m altitude: -5°C to 45°C

1,800m to 5,000m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220m

Relative Humidity

5% to 95% (non-condensing)

Heat Dissipation

Heat dissipation with fan, intelligent fan speed adjustment
