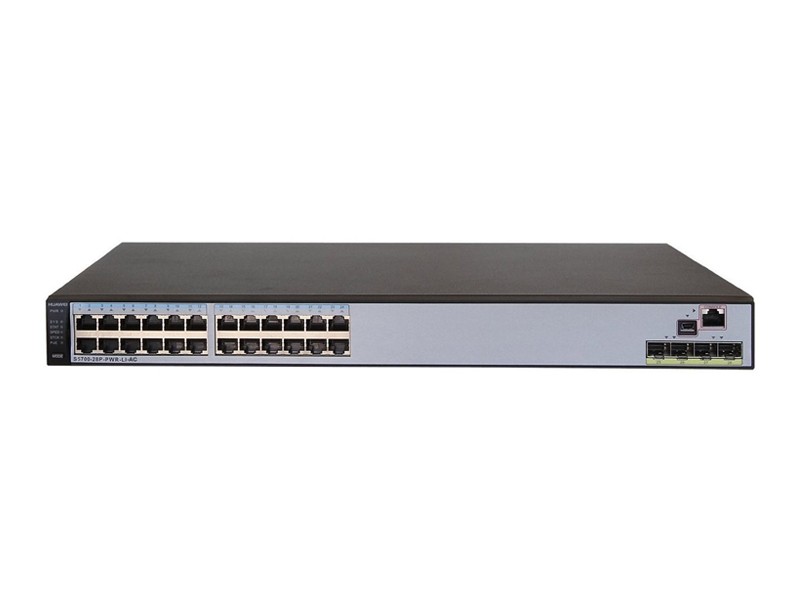

Huawei S5700-28P-PWR-LI-AC

Item

Models

Fixed Ports

S5700-10P-LI-AC/S5700-10P-PWR-LI-AC: 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports
S5700-28P-LI-AC/S5700-28P-PWR-LI/S5700-28P-LI-BAT: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports
S5700-52P-LI-AC/S5700-52P-PWR-LI: 48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports
S5700-28X-LI*/S5700-28X-PWR-LI-AC/S5701-28X-LI-AC: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
S5700-52X-LI-AC/S5700-52X-PWR-LI-AC: 48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
S5700-28X-LI-24S/S5701-28X-LI-24S-AC: 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
S5700-28P-LI-24S-BAT: 28 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports
S5700-52X-LI-48CS-AC: 48 x GE CSFP ports or 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports

MAC Address Table

16K MAC address entries MAC address learning and aging
Static, dynamic, and blackhole
MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC learning limiting

VLAN Features

4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces
1:1 and N:1 VLAN mapping

Jumbo frame

10K

Reliability

RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
SEP
ERPS (G.8032)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
BPDU tunnel

IP Routing

Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng)

IPv6 Features

Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
MLD v1/v2 snooping

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Interface-based multicast traffic statistics

QoS/ACL

Rate limiting on packets sent and received by an interface
Packet redirection
Interface-based traffic policing and two-rate and three-color CAR
Eight queues on each interface
WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on interfaces

Security

Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID
Port isolation, port security, and sticky MAC

MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses IEEE
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH V2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist

Access Security

DHCP relay, DHCP server, DHCP snooping, and DHCP security

Lightning Protection

Service interface: 6 kV

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations
Supports independent running client

Management and Maintenance

iStack (excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches)
Virtual Cable Test (VCT)
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
eSight and web-based NMS
HTTPS
LLDP/LLDP-MED
System logs and multi-level alarms
802.3az EEE
Dying Gasp (excluding battery LAN switches)
Device hibernation mode (excluding PWR serials switches, battery LAN switches, S5700-10P-LI, S5700-28X-LI-24S, S5701-28X-LI-24S-AC and S5700-52X-LI-48CS-AC)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)

Operating Environment

Long-term operating temperature: 0°C to 45°C
Relative humidity: 5% to 95% (non-condensing)

Long-term operating temperature: 0°C to 50°C
Relative humidity: 5% to 95% (non-condensing)

Long-term operating temperature: 0°C to 45°C
Relative humidity: 5% to 95% (non-condensing)

Input Voltage

AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz
Maximum voltage range: 90V to 264V, 47 Hz/63 Hz

DC:
Rated voltage range: –48V to –60V
Maximum voltage range: –36V to –72V

Note: Models supporting PoE do not use DC power supplies.

Power Socket Position

S5700-10P-LI-AC/S5700-10P-PWR-LI-AC/S5700-28P-LI-AC/S5700-28P-PWR-LI/S5700-28X-LI*/S5700-28X-PWR-LI-AC/S5700-28X-LI-24S/S5700-52P-LI-AC/S5700-52P-PWR-LI/S5700-52X-LI-AC/S5700-52X-PWR-LI-AC/S5700-28P-LI-BAT/S5700-28PLI-24S-BAT/S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: rear power sockets
S5701-28X-LI-24S-AC/S5701-28X-LI-AC/S5700-52X-LI-48CS-AC: front power sockets

Battery

One slot for lead-acid battery charger module (supported by battery LAN switches)

Dimensions (W x D x H)

S5700-10P-LI-AC: 250 mm x 180 mm x 43.6 mm
S5700-10P-PWR-LI-AC: 320 mm × 220 mm × 43.6 mm
S5700-28P-LI-AC/S5700-28X-LI-AC/S5700-28X-LI-DC/S5700-28X-LI-24S-AC/S5700-28X-LI-24S-DC/S5701-28X-LI-AC/S5701-28X-LI-24S-AC/S5700-52X-LI-48CS-AC/S5700-28TP-LI-AC: 442 mm x 220 mm x 43.6 mm

S5700-28P-PWR-LI/S5700-52P-LI-AC/S5700-52P-PWR-LI/S5700-28X-PWR-LI-AC/S5700-52X-LI-AC/S5700-52X-LI-DC/S5700-52X-PWR-LI-AC/S5700-28P-LI-BAT/S5700-28P-LI-24S-BAT/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: 442 mm x 310 mm x 43.6 mm

Power Consumption

S5700-10P-LI-AC < 11.5W;
S5700-10P-PWR-LI-AC < 142.4W (PoE: 124W);
S5700-28X-LI-24S-AC < 60W;
S5700-28X-LI-24S-DC < 57W;
S5701-28X-LI-24S-AC < 60W

S5700-28P-LI-AC < 24W;
S5700-28P-PWR-LI < 436.5W (PoE: 370W);
S5700-28X-LI-AC < 41W;
S5700-28X-LI-DC < 42W;
S5700-28X-PWR-LI-AC < 448.8W (PoE: 370W);
S5701-28X-LI-AC < 39.5W;
S5700-28TP-LI-AC < 26.4W;
S5700-28TP-PWR-LI-AC < 469.7W (PoE: 370W);
S5701-28TP-PWR-LI-AC < 238.7W (PoE: 185W)

S5700-52P-LI-AC < 48.4W;
S5700-52P-PWR-LI < 464.5W (PoE: 370W);
S5700-52X-LI-AC/S5700-52X-LI-DC < 61W

S5700-52X-PWR-LI-AC < 479.3W (PoE: 370W)

S5700-28P-LI-BAT < 23W;

S5700-28P-LI-24S-BAT < 34.1W

S5700-52X-LI-48CS-AC < 79.9W
